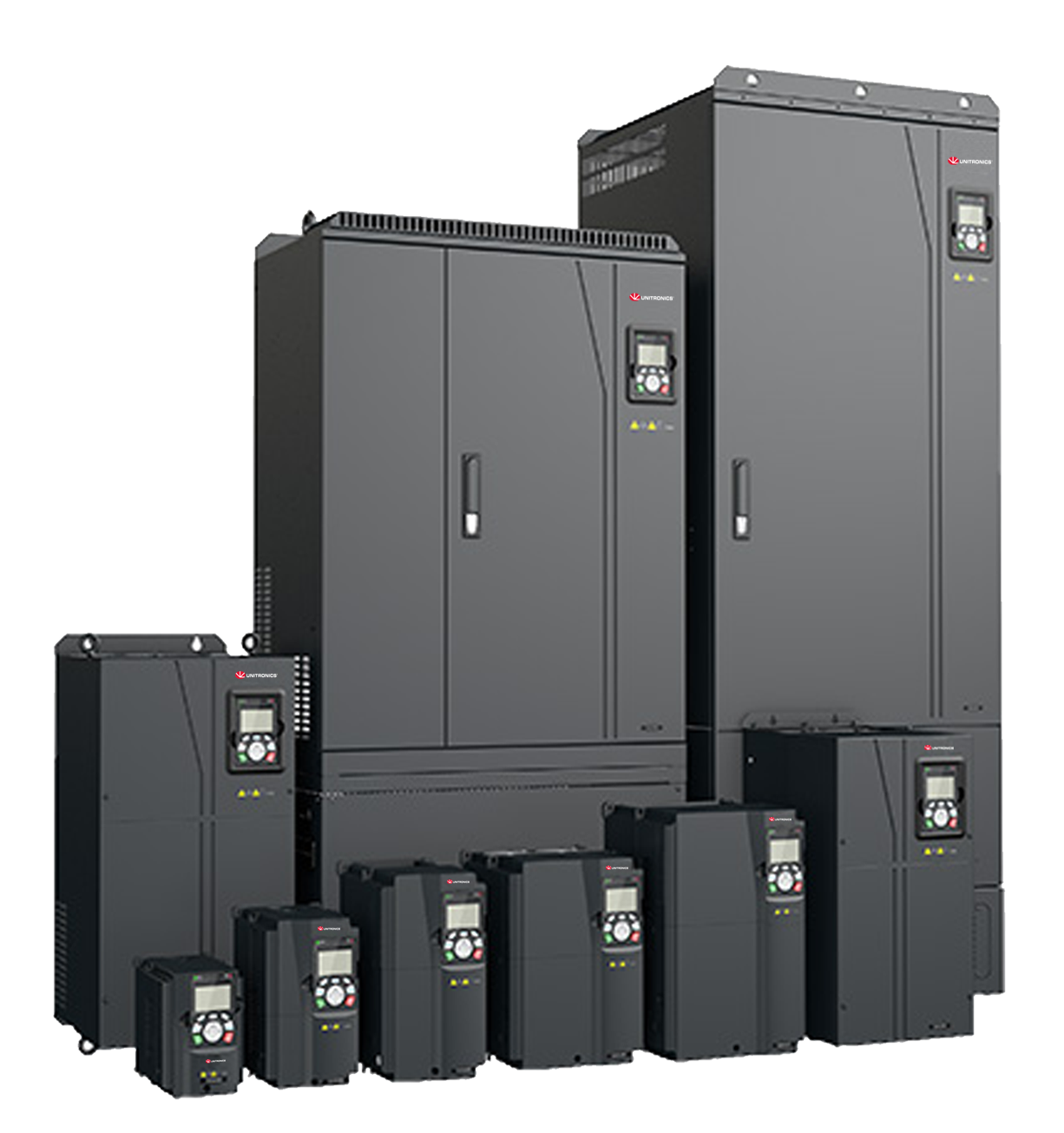

Variable Frequency Drives (VFD)

High performance, cost effective VFDs, ideal for both machines & process control.

Unitronics VFDs offer options for both single and three phase VFDs from 0.4 kW and up to 500 kW.

Unitronics VFDs can be used as a stand-alone product, or as part of a complete All-in-One package with our controllers.

VFD: Easy to Program. Simple to Use

  • STO, Built-in
  • Communication: Built-in RS485 Modbus RTU, Optional Ethernet cards
  • EMI Filters, Built-In
  • Braking units, Built-in
  • Heavy-duty overload capacity, up to 200%
  • Coated PCBs: minimize dust penetration damage
  • Sensorless control: Vector, Torque, volts per Hz
  • Close loop control via optional card (B7 series only)

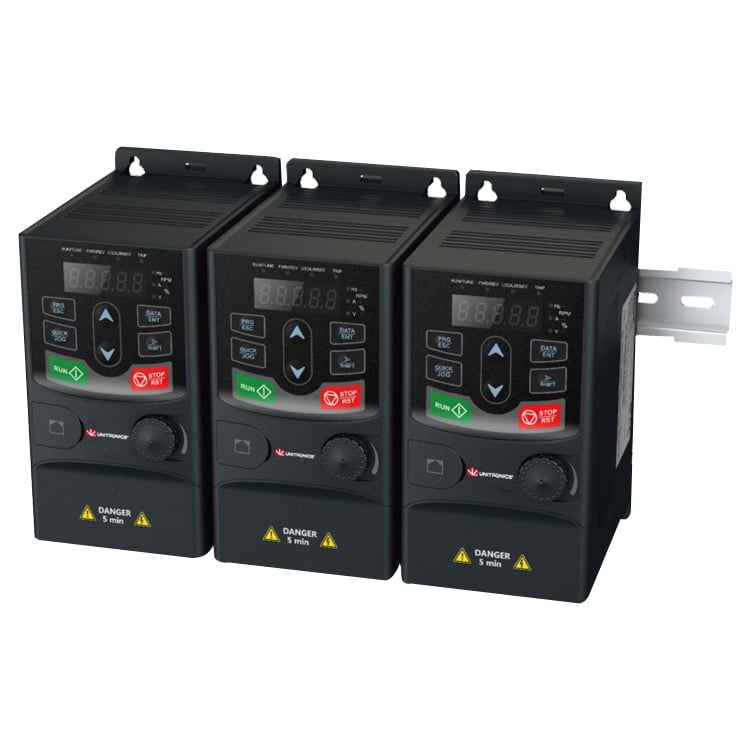

  • Mounting options: Wall, Flange, Rail
  • Optional extension cards for communication and I/O
  • CE, UL, cUL, and TÜV-SÜD Functional Safety

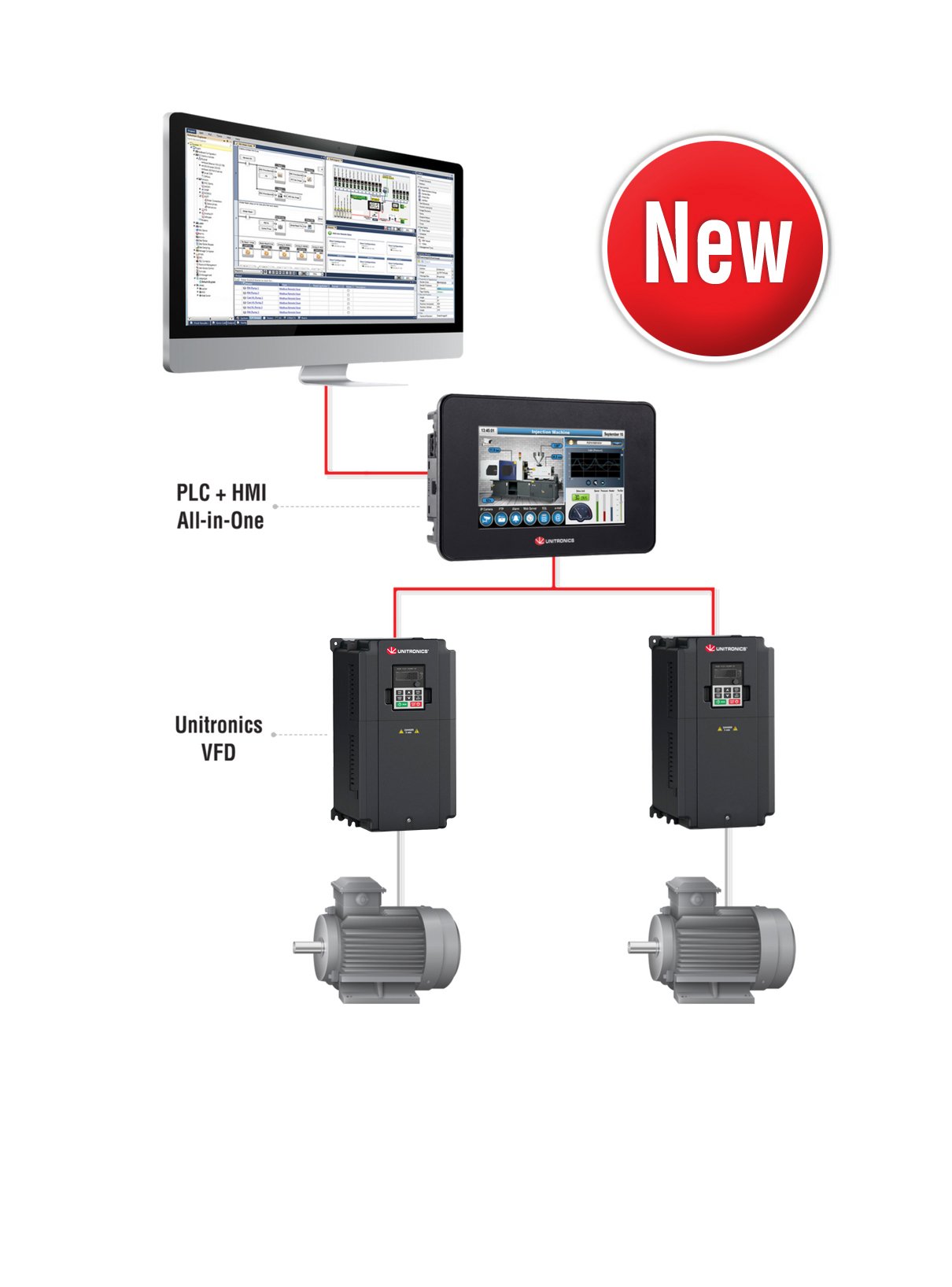

Unitronics VFDs can be used as a stand-alone product, or within an end-to-end solution: VFD, controller, and HMI.

This simplifies workflow by enabling you to:

  • Obtain your VFDs, PLC + HMI controllers and related components, as well as technical support, from a single supplier.
  • Operate your VFD directly from the controller’s HMI panel
  • Use the same programming software as the PLC control and HMI application, to:
    • Set-up and configure multiple VFDs in a snap
    • Monitor and debug your VFD – either via UniLogic or Scope Trace
    • Remotely Access your VFD via UniLogic software environment
  • Effortless Communication- Simple communication based control . Ensuring your system provides robust operation & minimizing EMI effect.
  • Cost Effective –
    • Energy efficacy
    • Reduce IO modules and cabling costs
    • Short integration & development time

UniLogic – award winning software
now with VFD integration!

  • Dynamic configuration profile
  • Easy to use setup wizard
  • Multi-Motor control
  • Operate directly from UniStream
  • Monitor and debug the VFD via online watch or Scope Trace graph

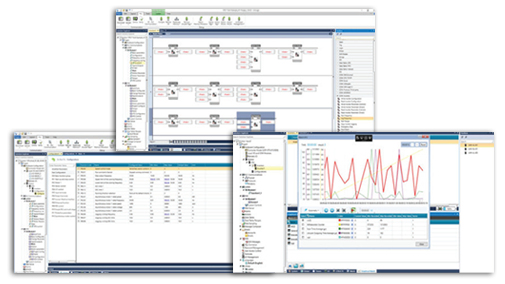

Unilogic screens

Product Specifications

UMI-B1 EU UMI-B1 ULUMI-B5 ULUMI-B7
PowerInput Voltage200-240VAC, Single Phase
380-440VAC, Three Phase
200-240VAC, Single Phase
200-240VAC, Three Phase
380-480VAC, Three Phase
200-240VAC, Three Phase
380-480VAC, Three Phase
200-240VAC, Three Phase
380-480VAC, Three Phase
520-600VAC, Three Phase

Input Frequency50/60Hz50/60Hz (47-63Hz)
Supported MotorsAsynchronous Induction Motors, Three Phase Input
Asynchronous Induction Motors,
Three Phase Input

Permanent Magnet Synchronous Motors, Three Phase Input
Asynchronous Induction Motors,Permanent Magnet Synchronous
0-400Hz
Overload Capacity150%, 60 seconds150% 60 seconds, 180% 10 seconds, 200% 1 second
180%, 10 seconds
200%, 1 second
ControlControl MethodSVPWM (Space Vector PWM)
SVC (Sensorless Vector Control)
SVPWM (Space Vector PWM)
VC (Closed loop vector control)
SVC (Sensorless Vector Control)
Control SettingMODBUS, Analog, Digital, PID, PulseMODBUS, Analog, Digital, PID, Pulse,veriety of communication cards
CommunicationMODBUS RTU RS-485Build in MODBUS RTU RS-485 + optional communication cards (see catalog)

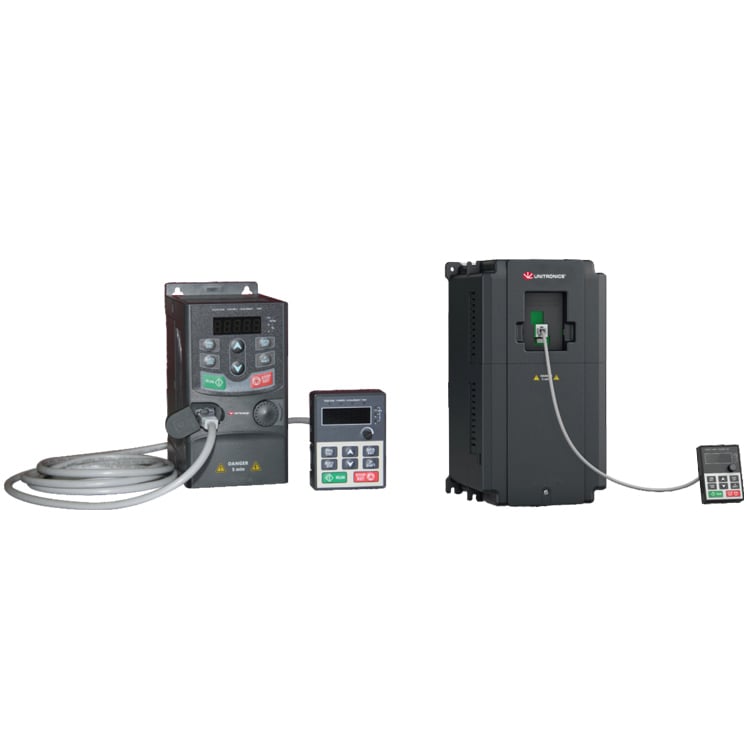

KeypadFilm Keypad: <4kW (5HP)
Removable: ≥4kW (5HP)
Film Keypad: <4kW (5HP)
Removable: ≥4kW (5HP)
Removable: All power rangeRemovable:
All power range
InputAnalog InputsTotal 2:
1 input 0-10V,
0-20mA
1 input 0-10V
Total 3:
2 inputs 0-10V, 0-20mA
1 input 0-10V
Total 2: AI1: 0-10V/0-20mA , AI2: -10->10V
Digital InputsTotal 5:
4 inputs 1kHz
1 input 50kHz
Total 9:
8 inputs 1kHz
1 input 50kHz
4 regular inputs; max.frequency:1kHz; internal impendence:3.3kOhm
2 high-speed inputs ; max frequency:50kHz
OutputAnalog OutputsUp to 2: 1 output 0-10V,
0-20mA ≤2.2kW/3HP,
2nd output available from >2.2kW/3HP)
2 outputs 0-10V, 0-20mA1 output, AO1:0-10v/0-20mA
Digital Outputs1 output sink/sourceTotal 2: 1 output sink/source,
1 output 50kHz
Total 2: 1 output sink/source, 1 output 50kHz
Relay Outputs
Up to 2:
1 Programmable Multi-functional
Output.
2nd output available from
>2.2kW/3HP
Total 2 Programmable Multi-functional outputsTotal 2 Programmable Multi-functional outputs
FeaturesDynamic Braking UnitBuilt-in(≤37kW/50HP)Built-in(≤30kW40HP)Built-in for VFDs of 220V (≤15kW/20HP), 480V (≤30kW/40HP) ,
and 575V (≤18.5kW/25HP)
Optional for VFDs of 220V (18.5-55kW/25-75HP), 480V (37kW/50HP),
575v (22-110kW/30-150HP)
Optional (>37kW/50HP)Optional (>30kW/40HP)
EMCBuilt-in C3 (≥4kW/5HP), Comply with IEC/EN 61800-3Built-in C3, Comply with IEC/EN 61800-3For 480V VFDs Built-In C3, Comply with IEC/ 61800-3
Optional C3 (<4kW/5HP), Comply with IEC/EN 61800-3Expansion cards:
Max 2 expansion cards for drives ≤5.5kW and max 3 expansion cards for drives ≥7.5kW
Optional C2, Comply with IEC/EN 61800-3
GeneralOperating Temperature(-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F)(-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F)
Altitude2000m/6600 ft (de-rated by 1% for every additional 100m/330ft above 1000m/3300ft)
Enclosure RatingIP20IP20
Mounting OptionsWall and Rail (≤2.2kW/3HP)Wall, FlangeWall, floor, flange mounting
Wall and Flange (>2.2kW/3HP)
CoolingAir-coolingAir-cooling
Safe Torque Off×Yes Integrated STO (SIL2)
ComplianceCE, TÜV-SUD Safety MarkCE, UL and cULCE, UL and cUL

Close

UMI-B1 Series - STO- TÜV SÜD certified

Article NumberRated Output Power kWRated Output Power HPInput Voltage
UMI-0004BE-B10.40.5200-240V Single Phase
UMI-0007BE-B10.751200-240V Single Phase
UMI-0015BE-B11.52200-240V Single Phase
UMI-0022BE-B12.23200-240V Single Phase
UMI-0007EE-B10.751380-440V Three Phase
UMI-0015EE-B11.52380-440V Three Phase
UMI-0022EE-B12.23380-440V Three Phase
UMI-0040EE-B145380-440V Three Phase
UMI-0055EE-B15.57.5380-440V Three Phase
UMI-0075EE-B17.510380-440V Three Phase
UMI-0110EE-B11115380-440V Three Phase
UMI-0150EE-B11520380-440V Three Phase
UMI-0185EE-B118.525380-440V Three Phase
UMI-0220EE-B12230380-440V Three Phase
UMI-0300EE-B13040380-440V Three Phase
UMI-0370EE-B13750380-440V Three Phase
UMI-0450EE-B14560380-440V Three Phase
UMI-0550EE-B15575380-440V Three Phase
UMI-0750EE-B175100380-440V Three Phase
UMI-0900EE-B190120380-440V Three Phase
UMI-1100EE-B1110150380-440V Three Phase

Close

UMI- B1 Series - UL Certified

Article NumberRated Output Power kWRated Output Power HPInput Voltage
UMI-0004BU-B10.40.5200-240V Single Phase
UMI-0007BU-B10.751200-240V Single Phase
UMI-0015BU-B11.52200-240V Single Phase
UMI-0022BU-B12.23200-240V Single Phase
UMI-0004CU-B10.40.5200-240V Three Phase
UMI-0007CU-B10.751200-240V Three Phase
UMI-0007EU-B10.751380-480V Three Phase
UMI-0015EU-B11.52380-480V Three Phase
UMI-0022EU-B12.23380-480V Three Phase

Close

UMI-B5 Series - UL Certified

Article NumberRated Output Power kWRated Output Power HPInput Voltage
UMI-0007CU-B50.751200-240V Three Phase
UMI-0015CU-B51.52200-240V Three Phase
UMI-0022CU-B52.23200-240V Three Phase
UMI-0040CU-B545200-240V Three Phase
UMI-0055CU-B55.57.5200-240V Three Phase
UMI-0075CU-B57.510200-240V Three Phase
UMI-0110CU-B51115200-240V Three Phase
UMI-0150CU-B51520200-240V Three Phase
UMI-0185CU-B518.525200-240V Three Phase
UMI-0220CU-B52230200-240V Three Phase
UMI-0300CU-B53040200-240V Three Phase
UMI-0370CU-B53750200-240V Three Phase
UMI-0450CU-B54560200-240V Three Phase
UMI-0550CU-B55575200-240V Three Phase
UMI-0015EU-B51.52380-480V Three Phase
UMI-0022EU-B52.23380-480V Three Phase
UMI-0040EU-B545380-480V Three Phase
UMI-0055EU-B55.57.5380-480V Three Phase
UMI-0075EU-B57.510380-480V Three Phase
UMI-0110EU-B51115380-480V Three Phase
UMI-0150EU-B51520380-480V Three Phase
UMI-0185EU-B518.525380-480V Three Phase
UMI-0220EU-B52230380-480V Three Phase
UMI-0300EU-B53040380-480V Three Phase
UMI-0370EU-B53750380-480V Three Phase
UMI-0450EU-B54560380-480V Three Phase
UMI-0550EU-B55575380-480V Three Phase
UMI-0750EU-B575100380-480V Three Phase
UMI-0900EU-B590120380-480V Three Phase
UMI-1100EU-B5110150380-480V Three Phase

Close

Document Downloads

VFD filters: Installation Guide & Technical Specification

File NameDownload File
UMI-S0xxxDownload

User Manuals

File NameDownload File
UMI-B1-EU-V1.6Download
UMI-B5 operation manualDownload
UMI-B1-UL-V1.0Download

Accessories

File NameDownload File
VFD Optional PartsDownload
