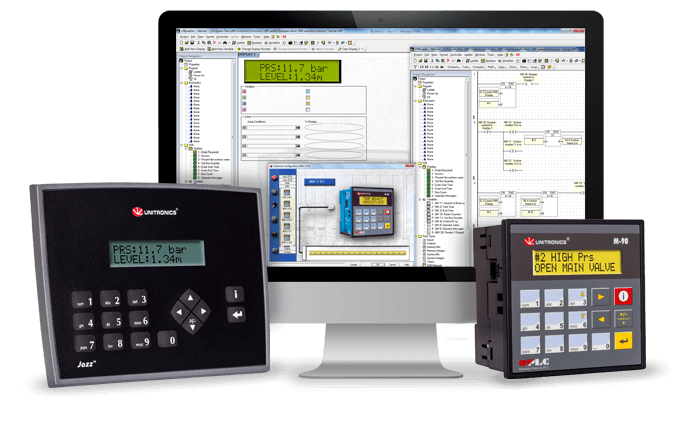

U90 Ladder for Jazz / and M90/M91 Series

Simple application programming

All-in-One software enables you to:

  • Develop your PLC and HMI applications in one environment
  • Configure Hardware & Communications
  • Establish modem and data communications
  • Test and debug your programs

Unitronics Added Value

  • Unitronics software & utilities—plus updates—provided at no charge.
  • Personalized Tech Support & Support Forum membership—provided at no charge.
U90 Ladder: Jazz & M91 Programmable Controllers

The Unitronics PLC provided the perfect solution for our need for control. Whether it was safety, mechanical or functionality, the Jazz had it all...

Peter Spano, GTS President

U90 Ladder™ - the Video

This short video introduces you to U90Ladder basics: Hardware and Communications configuration, Ladder and HMI editors.

Download software

Previous Versions

File nameDownload file
U90 Ladder Software V6.6.43Download
U90 Ladder Software V6.6.36Download
U90 Ladder Software V6.6.28Download
U90 Ladder Software V6.6.10Download
U90 Ladder Software V6.6.0Download
Looking for other versions?Email Support

System Requirements & Bug Reports

File nameDownload file
Version changesDownload
Bug ReportDownload
System RequirementsDownload

Software Utilities

M90 and Jazz controllers benefit from Unitronics Utilities that enable remote access from PC, data log harvesting, data manipulation, the ability to install  secure, encrypted U90 applications from a local or remote PC, plus tool for .NET, OPC, and DDE.

Software Utilities

Utility NameFunctionKey FeaturesTargeted UsersDownload
Remote AccessView and control a PLC directly from PC, via local or remote connection• View an HMI panel; use the PC keyboard + mouse to run the HMI application
• Operand and Data Table values: view values during runtime, import and export values to/from Excel/.csv files
• Operators requiring Remote Access
• System integrators: remote debugging, troubleshooting, fault-finding
DataXportCreate Data Logs from Data Tables and operand values in PLCS• Easily place HMI panels side-by-side to monitor distributed systems, or applications in several locations
• Run the HMI applications via PC keyboard + mouse
• Data analysts
• Plant managers
• Process engineers
UniDownload DesignerCreate compressed VisiLogic / U90Ladder applications (.udc files) for secure installation in local or remote PLCs• Prevent end-users from uploading and opening the application
• Include an OS to be installed at download
Set a Download channel, restrict end-user actions after installation and more
OEMs / System Integrators can:
• Protect source code.
• Enable customers to install an application without using VisiLogic or U90Ladder
Download Manager
& UniDownloader
Securely install .udc applications in local or remote PLCs• Prevent end-users from uploading and opening the application
• Include an OS to be installed at download
Set a Download channel, restrict end-user actions after installation and more
OEMs / System Integrators in installations with high security requirements
UniOPC ServerExchange data between Unitronics PLCs and OPC-supported software• Embeds unique licenses in the PLC, which enables application to run only on a licensed PLC
• Option to activate or deactivate different sections of your application
• Prevents theft of applications
• Control room operators
UniDDEExchange data with Windows based applications• Enables data exchange between Unitronics PLC’s and software that supports Microsoft’s Dynamic Data Exchange protocols, like Excel.Control rooms operators
