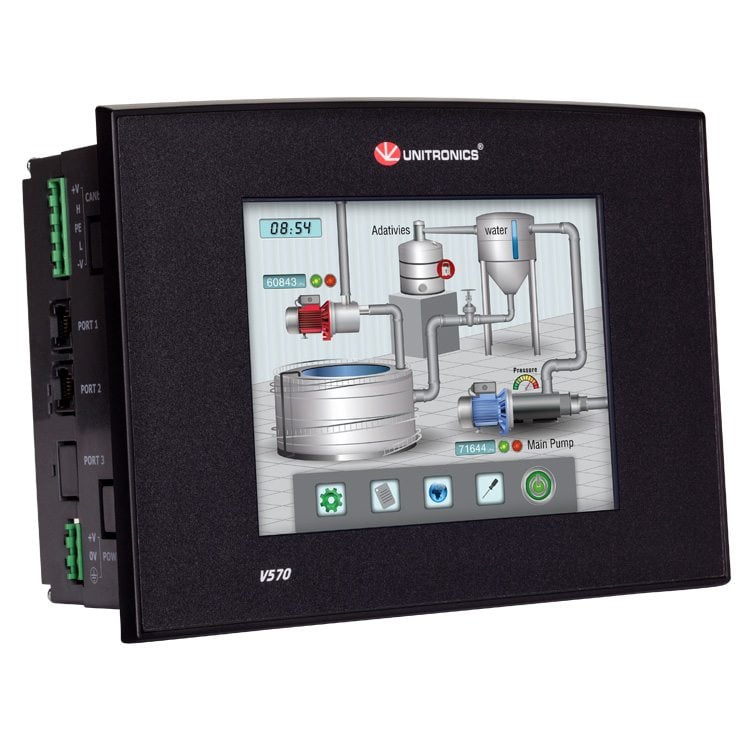

Vision570™- Programmable Logic Controller + Built-in Elegant HMI

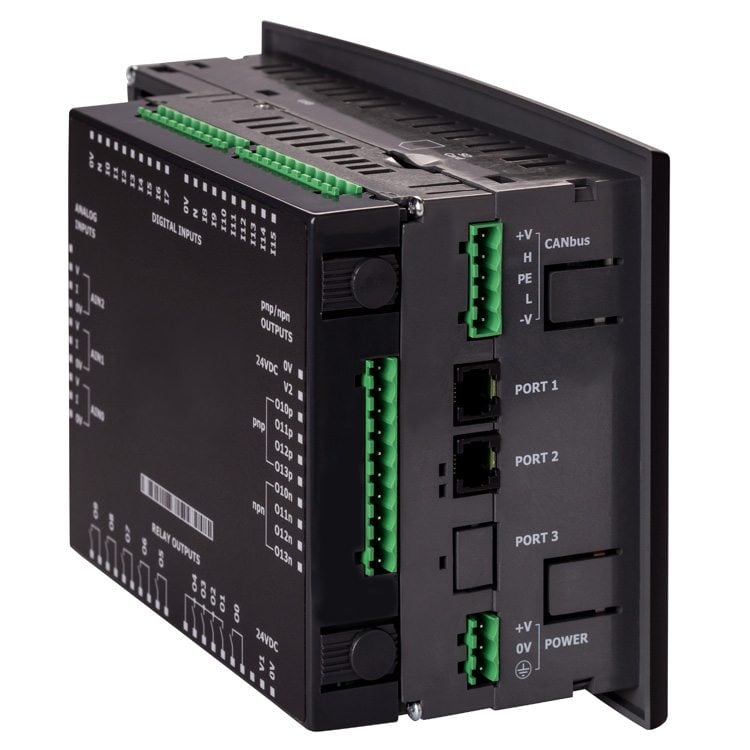

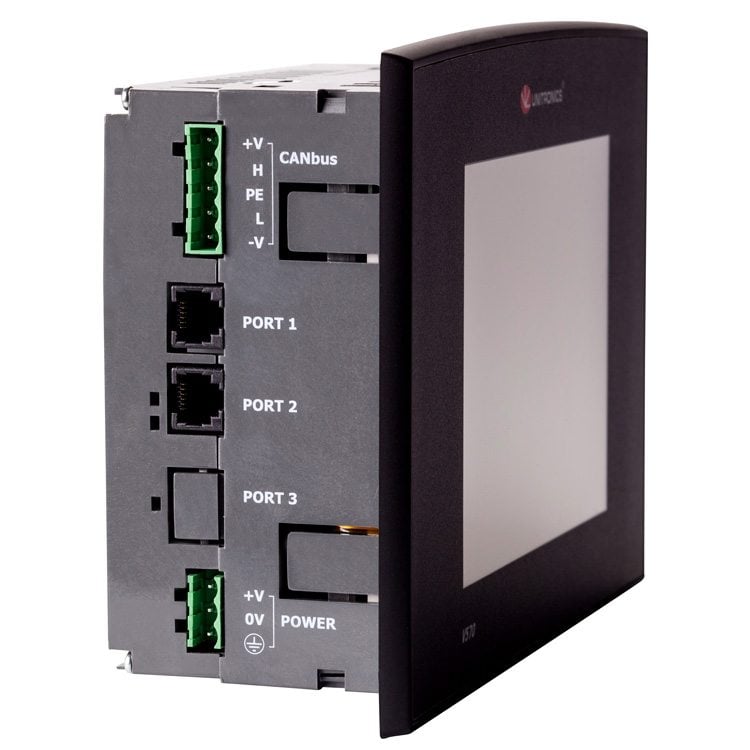

Advanced programmable logic controller from the back—big & high resolution, 5.7″ color touchscreen from the front. Snap-in I/O modules for an All-in-One controller; expands up to 1000 I/Os.

Programmable Logic Controller + Built-in touch HMI Overview

PLC

  • Auto-tune PID, up to 24 independent loops
  • Recipe programs and data logging via data tables
  • MicroSD/ SD card – log, backup, clone & more
  • Function Blocks

HMI

  • High quality touchscreen
  • Multi-language display
  • Built-in Alarm Screens

Communication

  • Mini USB for programming in V570
  • CANbus
  • Isolated RS485/ RS232
  • Port may be added for an additional Serial/Ethernet

         Protocols:

  • MODBUS TCP
  • SNMP*
  • CANopen, CANlayer2, UniCAN
  • BACnet, KNX and M-Bus via gateway
  • FB Protocol: for any 3rd party protocol

General Features: Web server, E-mail & SMS, 3G Modem support, Remote access utilities

* SNMP V1 Trap, SNMP community Name

I/O

Visilogic™ Software for Vision570™

All-in-One programming environment. Simple, fast development for both Ladder and HMI applications.

  • Develop your PLC and HMI applications in one environment
  • Configure hardware & communications
  • Establish modem and data communications
  • Test and debug your programs
  • Software Utilities Suite: remote access and data management tools



Product Details

Vision570™
I/O Options
Total supported I/Os1000
Snap-in I/O ModulesSnap-in I/O Modules plug directly into the back of the Vision unit- see Snap-in I/O Modules below
I/O ExpansionLocal or Remote I/Os may be added via expansion port or via CANbus — see I/O Expansion Modules below
Local I/O ExpansionUse Local Expansion Adapters to add up to 8 modules
Remote I/O ExpansionUse EX-RC1 adapters to further extend the number of I/Os1
Program
Application MemoryApplication Logic: 2MB · Images: 16MB · Fonts: 1MB
Scan Time9µ sec per 1K of typical application
Memory Operands8192 coils, 4096 registers, 512 long integers (32-bit), 256 double words (32-bit unsigned), 64 floats, 384 timers (32-bit), 32 counters
Additional non-retainable operands: 1024 X-bits, 512 X-integers, 256 X-long integers, 64 X-double words
Data Tables120K dynamic RAM data (recipe parameters, datalogs, etc.), up to 256K fixed data
SD Card (Micro)Store data logs, Alarm History, Data Tables, Trend data, export to Excel • Back up Ladder, HMI & OS, clone PLCs
USB1 USB programming port (Mini-B)
Enhanced FeaturesTrends: graph any value and display on HMI • Built-in Alarm management system• String Library: instantly switch HMI language
Operator Panel
TypeTFT LCD
Display Backlight IlluminationWhite LED
Colors65,536 colors, 16 bit resolution · Brightness- Adjustable via touchscreen or software
Cut Out
Height x Width (mm)		124.5 x 182
Display Resolution & Size320 x 240 pixels (QVGA)
Color TouchscreenResistive, Analog
KeysVirtual Keyboard
Environment
ProtectionIP65/IP66/NEMA4X (when panel mounted)
Operating Temperature0 to 50ºC
StandardsUL, CE, UL Hazardous Locations, Class I, Division 2
General
Battery7 years typical at 25°C, battery back-up for all memory sections and RTC
ClockReal-time clock functions (date and time)
Power Supply12/24VDC3
*Notes:
  1. EX-RC1: via CANbus, integrate standard Unitronics’ I/O modules at distances of up to 1000m.
  2. For a list of relevant models, contact Unitronics.
  3. 12V applies to PLC power supply only, and not to the I/O.

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

Snap-in I/O Modules

InputsOutputs
Snap-in I/O
Modules		Digital (isolated) 1
HSC/Shaft-encoder1AnalogTemperature
Measurement		Transistor (isolated)2 PWM/HSO2RelayAnalogOperating
Voltage
V200-18-E1B16
pnp/npn

2
10kHz 32-bit		3
0-10 V, 0-20mA, 4-20mA
10-bit		None4
pnp/npn		 2
pnp 0.5kHz
npn 50kHz
10None24VDC
V200-18-E2B16
pnp/npn
2
10kHz 32-bit		2
0-10 V, 0-20mA, 4-20mA
10-bit		None4
pnp/npn		 2
pnp 0.5kHz
npn 50kHz
102
0-10 V,0-20mA,4-20mA
12-bit		24VDC
V200-18-E3XB18
pnp/npn		2
10kHz 32-bit		4 (Isolated)
Thermocouple, PT100, 0-10V, 0-20mA, 4-20mA
14-bit		2
pnp/npn		 2
pnp 0.5kHz
npn 50kHz
154 (Isolated)
0-10 V, 4-20mA
12-bit		24VDC
V200-18-E4XB18
pnp/npn		2
10kHz 32-bit		4 (Isolated)
Thermocouple, PT100, 0-10V, 0-20mA, 4-20mA
14-bit		15
pnp
2
npn/pnp		 2
pnp 0.5kHz
npn 50kHz
None4 (Isolated)
0-10 V, 4-20mA
12-bit		24VDC
V200-18-E5B18
pnp/npn		2
10kHz 32-bit		3
0-10 V,0-20mA,
4-20mA
10-bit		None15
pnp
2
npn/pnp		 2
pnp 0.5kHz
npn 50kHz
NoneNone24VDC
V200-18-E6B18
pnp/npn		2
10kHz 32-bit		2
Thermocouple, PT100, 0-10V, 0-20mA, 4-20mA
14-bit
3
0-10V, 0-20mA, 4-20mA
10-bit

2
pnp/npn		2
pnp 0.5kHz
npn 50kHz		152 (Isolated)
0-10 V, 4-20mA
12-bit		24VDC
V200-18-E46B318
pnp/npn		2
10kHz 32-bit		6
0-10 V,0-20mA,4-20mA
14-bit
3
0-10 V,0-20mA,4-20mA
10-bit
None2
pnp/npn		2
pnp 0.5kHz
npn 100kHz		152 (Isolated)
0-10 V, 4-20mA
12-bit		24VDC
V200-18-E62B330
pnp/npn		2
50kHz 32-bit		2
0-10 V,0-20mA,4-20mA
10-bit
None28
pnp
2
npn/pnp		2
pnp 0.5kHz
npn 100kHz		NoneNone24VDC
*Notes:
  1. The total number of digital inputs listed includes high-speed inputs.
  2. The total number of digital outputs listed includes high-speed outputs.
  3. Not yet UL certified

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

I/O Expansion Modules

InputsOutputs
Expansion ModulesDigital 5HSC 5AnalogTemperature
Measurement		Weight
Measurement		Transistor6 PWM/HSO 6RelayAnalogOperating
Voltage
DigitalIO-DI8-TO88
pnp/npn		1
5kHz 16-bit		NoneNoneNone8
pnp		NoneNoneNone24VDC 9
IO-DI8-RO48
pnp/npn		1
5kHz 16-bit		NoneNoneNoneNoneNone4None24VDC 9
IO-DI8-RO88
pnp/npn		1
5kHz 16-bit		NoneNoneNoneNoneNone8None24VDC 9
EX90-DI8-RO8 38
pnp		1
5kHz 16-bit		NoneNoneNoneNoneNone8None24VDC
IO-DI1616
pnp/npn		1
5kHz 16-bit		NoneNoneNoneNoneNoneNoneNone24VDC 9
IO-TO16NoneNoneNoneNoneNone16
pnp		NoneNoneNone24VDC
IO-RO8NoneNoneNoneNoneNoneNoneNone8None24VDC 9
IO-RO16NoneNoneNoneNoneNoneNoneNone16None24VDC 9
IO-DI8ACH8 ACNoneNoneNoneNoneNoneNoneNoneNone110/220 VAC
Analog, Temperature and
Weight/Strain Measurements		IO-AI4-AO2NoneNone4
0-10V, 0-20mA, 4-20mA
12-bit		NoneNoneNoneNoneNone2
±10V
12-bit+sign,
0-20mA, 4-20mA
12-bit		24VDC
IO-PT400NoneNoneNone4
PT100/NI100/NI120		NoneNoneNoneNoneNoneNot relevant
IO-PT4KNoneNoneNone4
PT1000/NI1000
NoneNoneNoneNoneNoneNot relevant
IO-AO6XNoneNoneNoneNoneNoneNoneNoneNone6 (Isolated)
0-10V, 0-20mA, 4-20mA
12-bit		24VDC
IO-LC11
pnp		NoneNoneNone1
Loadcell / Strain gauge
2
pnp		NoneNoneNone24VDC
IO-LC31
pnp		NoneNoneNone3
Loadcell / Strain gauge
2
pnp		NoneNoneNone24VDC
IO-ATC8NoneNone8
Thermocouple, 0-10V, 0-20mA, 4-20mA
14-bit		NoneNoneNoneNoneNoneNot relevant
IO-AI8NoneNone8
0-10V, 0-20mA, 4-20mA
14-bit		NoneNoneNoneNoneNoneNoneNot relevant
XL Digital/AnalogIO-D16A3-RO1616
pnp/npn		2
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNoneNoneNone16None24VDC
IO-D16A3-TO1616
pnp/npn		1
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNone15
pnp,
1
pnp/npn		1
pnp 0.5kHz
npn 50kHz		NoneNone24VDC
EX-D16A3-RO8716
pnp/npn		2
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNoneNoneNone8None24VDC
EX-D16A3-TO16716
pnp/npn		1
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNone15
pnp
1
pnp/npn		1
pnp 0.5kHz
npn 50kHz		NoneNone24VDC
High-speed Remote I/O ModuleEXF-RC15 2,4
,10		9
pnp/npn		3
200kHz 32-bit		NoneNoneNone4
npn		4
(up to 3 PTO)
2None24VDC
*Notes:
  1. Number of supported I/Os & I/O modules varies according to module
  2. The EXF-RC15 functions as a node in a Vision UniCAN network and connects to the Vision controller via CANbus and programmed in VisiLogic. The EXF-RC15 cannot be extended as regular I/O unit.
  3. The EX90 is housed in an open casing. Only one EX90 can be connected per PLC, as a single expansion module; Expansion adapter not required.
  4. Supported by Vision series. Not supported by M91 series.
  5. The total number of digital inputs listed includes high-speed inputs.. Example: the IO-D16A3-TO16 offers a total of 16 pnp/npn inputs. You can configure I4 as a HSC and I5 as a Counter reset; this reduces the available number of digital inputs to 14.
  6. The total number of digital outputs listed includes high-speed outputs. Example: the IO-D16A3-TO16 offers a total of 16 transistor outputs. You can configure 1 to High-speed output, reducing the number of available digital outputs to 15.
  7. Functions as local adapter. Can support up to 7 I/O modules
  8. 16-bit or 32-bit, depending on the PLC
  9. Also available as 12VDC – contact us for part number

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

COM Modules

ModelsEthernetRS232/RS485Isolated RS232/RS485CANbusProfibus
SAMBAV100-17-ET2
V100-17-RS4V100-17-RS4XV100-17-CANNone
V130, V350, V4301V100-17-ET2
V100-S-ET23		V100-17-RS4V100-17-RS4XV100-17-CAN
V100-S-CAN		V100-17-PB1
V570, V560, V1040, V12102V200-19-ET2V200-19-RS4V200-19-RS4-XBuild inNone
V7004Built-inV100-17-RS4V100-17-RS4XV100-17-CANV100-17-PB1
*Notes:

1. V130/V350/V430: 1 optional port for serial or Ethernet & 1 optional port for CANbus/ Profibus.
2. V560, V570/V1040/V1210: 1 optional port for serial or Ethernet.
3. Extended temperature cards, operational temperature : -30ºC to 60ºC (-22ºF to 140ºF) – for V350-JS-TA24 only.
4. V700 is supplied with an onboard Ethernet port. 1 port may be added: serial, Profibus. and CANbus.
