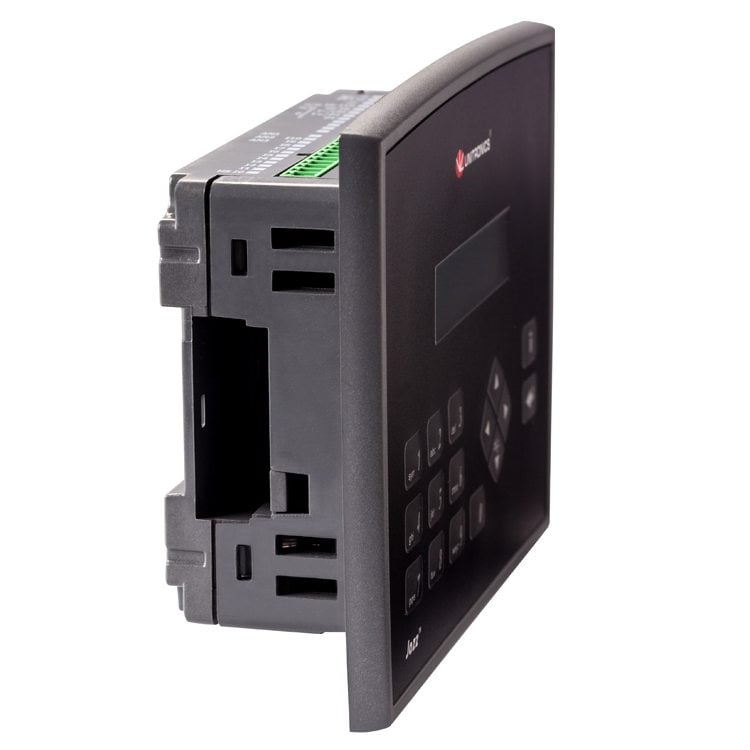

Jazz®- PLC Controller With Integrated HMI

An All-in-One PLC controller that is as affordable as a “smart relay” — full-function PLC combined with a textual HMI and keyboard, with up to 40 onboard I/Os.

Multi-function PLC Controller With Integrated HMI Overview

PLC

  • Auto-tune PID, up to 4 independent loops (according to model*)

* Up to 4 loops: models UA24 / UN20, 1 loop: all other models 1

HMI

  • Up to 60 user-designed screens
  • Multilingual: supports over 15 languages and
    20 graphic symbols

Communication

  • Mini USB for programming
  • 1 Port may be added: Serial/Ethernet

         Protocols:

  • PC access via MODBUS or OPC server
  • Supports MODBUS protocol (according to model)

General Features: SMS via GSM, 3G Modem support, Remote access utilities

I/O

U90™ Software for Jazz®

All-in-One software enables you to:

  • Develop your PLC and HMI applications in one environment
  • Configure hardware & communications
  • Establish modem and data communications
  • Test and debug your programs

Product Details

Jazz®
Program
Ladder Code
Memory (virtual)		JZ20
JZ10		 48K
models 24K
Memory Operands256 coils, 256 registers, 64 timers
Operator Panel
TypeSTN LCD
Display Size2 lines x 16 characters
Keypad
Keys16 keys, 10 of which may be user-labeled
General
Power Supply 24VDC
Battery 10 years typical at 25°C, battery back-up for RTC and system data, including variable data
ClockReal-time clock functions (date and time)
EnvironmentIP65/NEMA4X ( when panel mounted)
StandardCE, UL
Many of our products are also UL Class 1 Div 2 and GOST certified - please contact Unitronics
Programming PortJZ20
JZ10		On Board Mini USB
Article No. : JZ-PRG sold separately
Communication
SerialRS232/RS485 Add-on port (isolated) Article No.: JZ-RS4 sold separately
EthernetJZ20

JZ10		Ethernet add on port Article No.: MJ20-ET1 sold separately

Not supported

Close

Jazz® Models - Onboard I/O

Inputs 1Outputs
Article SummaryDigital 2
HSC/Shaft-encoder 2Analog Temperature
Measurement 		Transistor 3 PWM/HSO 3 RelayAnalogOperating
Voltage
JZ20-J-R10
JZ20-R10
6 Digital Inputs
4 Relay Outputs		62
10kHz, 16-bit

NoneNoneNoneNone4None24VDC
JZ20-R16
JZ20-J-R16
6 Digital,
2 D/A , 2 Analog Inputs1
6 Relay Outputs



8
2
0-10V
10 or 12-bit
2
0-20mA, 4-20mA
10-bit		NoneNoneNone6None24VDC
JZ20-J-R16HS
6 Digital, 3 3HSC/Shaft-encoder, 2 A/D, 2 AI, 6 Relay outputs





8
2
0-10V
10 or 12-bit
2
0-20mA,
4-20mA
10-bit		NoneNoneNone6None24VDC
JZ20-R31
JZ20-J-R31
16 Digital, 2 D/A , 2 Analog Inputs1
11 Relay Outputs




18
2
0-10V
10 or 12-bit
2
0-20mA, 4-20mA
10-bit		NoneNoneNone
11None24VDC
JZ20-T10
JZ20-J-T10		6 DigitalInputs
4 Transistor Outputs
6NoneNone4
pnp		NoneNoneNone24VDC
JZ20-T18
JZ20-J-T18		6 Digital, 2 D/A, 2 Analog Inputs1
8 Transistor Outputs




8
2
0-10V
10-bit
2
0-20mA, 4-20mA
10-bit		None8
pnp		NoneNoneNone24VDC
JZ20-J-T20HS6 Digital, 3 3HSC/Shaft-encoder, 2 A/D, 2 AI, 10 Transistor outputs


8
2
0-10V
10-bit		None8
pnp
2
32kHz		NoneNone24VDC
JZ20-T40
JZ20-J-T40		16 Digital, 2 D/A, 2 Analog Inputs1
20 Transistor Outputs




18NoneNone20
pnp		NoneNoneNone24VDC
JZ20-UA24
JZ20-J-UA24		9 Digital Inputs,
1 HSC, 2 A/D, 2 AI,
2 TC/PT100,
5 Relay Outputs,
2 Transistor Outputs, 2 AO

112
0-20mA
4-20mA

2
0-10 VDC		2
Thermocouple, PT100		2
pnp		2
52
10V
4-20mA 12-bit
24VDC
JZ10-11-UN20
JZ10-J-UN20		9 Digital, 2 D/A1, Analog
1 TC/PT100 Inputs1
5 Relay 2 Transistor Outputs		111
5kHz, 16-bit		2
0-10V
10-bit
1
0-20mA, 4-20mA
10-bit		1
Thermocouple, PT100		2
pnp		25None24VDC
*Notes:
  1. In some models certain inputs are adaptable, and can function as either digital or analog. Adapting requires input pins. This reduces the number of digital inputs. Pin requirements:
    • Each analog input requires 1 pin.
  2. Note that the high-speed inputs are included in the total number of digital inputs.
  3. Note that the high-speed outputs are included in the total number of npn/pnp digital outputs.
    • In order to download applications and enable communications, install Jazz® with the appropriate Add-on Module. JZ20 can be programmed via built-in USB device port.
