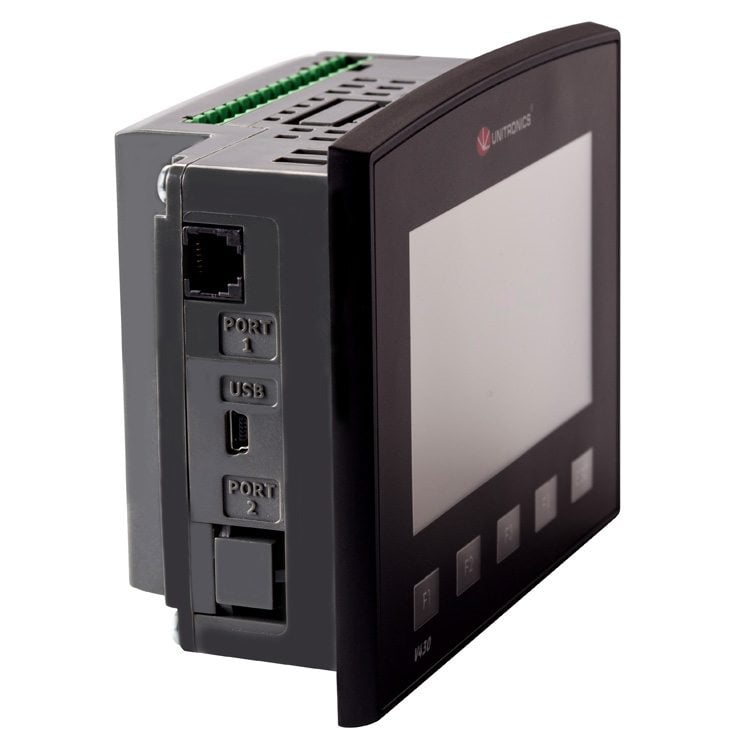

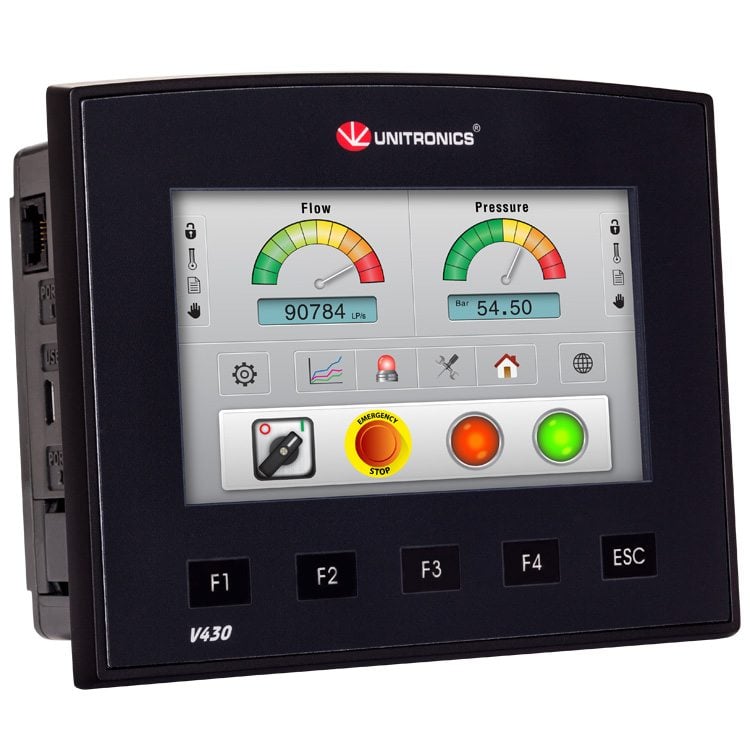

Vision430™- PLC Controller with integrated HMI Touchscreen

Advanced PLC controller integrated with a 4.3″ wide-aspect, color touchscreen. Includes onboard I/O configurations; expands up to 512 I/Os.

Advanced PLC Controller with incredible HMI Touchscreen Overview

  • Auto-tune PID, up to 24 independent loops
  • Recipe programs and data logging via data tables
  • Micro SD card – log, backup, clone & more
  • Function Blocks
  • High quality touchscreen
  • Multi-language display
  • Built-in Alarm Screens
  • Mini USB for programming
  • RS485/ RS232
  • 2 ports may be added: 1 Serial/Ethernet/Profibus and
    1 CANbus

         Protocols:

  • MODBUS TCP
  • SNMP*
  • CANopen, CANlayer2, UniCAN
  • BACnet, KNX and M-Bus via gateway
  • FB Protocol: for any 3rd party protocol

General Features: Web server, E-mail & SMS, 3G Modem support, Remote access utilities

* SNMP V1 Trap, SNMP community Name

Visilogic™ Software for Vision430™

All-in-One programming environment. Simple, fast development for both Ladder and HMI applications.

  • Develop your PLC and HMI applications in one environment
  • Configure hardware & communications
  • Establish modem and data communications
  • Test and debug your programs
  • Software Utilities Suite: remote access and data management tools



Product Details

Vision430™
I/O Expansion
Local or Remote I/Os may be added via expansion port or via CANbus. Expand up to 512 I/Os — see table below I/O Expansion Modules
Program
Application MemoryApplication Logic: 1MB • Images: 12MB • Fonts: 512K
Scan Time15µ sec per 1K of typical application
Memory Operands8192 coils, 4096 registers, 512 long integers (32-bit), 256 double words (32-bit unsigned), 64 floats, 384 timers (32-bit), 32 counters
Additional non-retainable operands: 1024 X-bits, 512 X-integers, 256 X-long integers, 64 X-double words

Data Tables120K dynamic RAM data (recipe parameters, datalogs, etc.), up to 256K fixed data
SD Card (Micro)Store data logs, Alarm History, Data Tables, Trend data, export to Excel • Back up Ladder, HMI & OS, clone PLCs
Enhanced FeaturesTrends: graph any value and display on HMI • String Library: instantly switch HMI language
Operator
Panel
Type & colorsTFT LCD • 65,536 colors, 16 bit resolution • Brightness- Adjustable via touchscreen or software
DisplayResolution: 480x272 pixels • Size: 4.3”
TouchscreenResistive, Analog
Keys5 programmable keys. Labeling options— function keys, arrows or customized
General
Power Supply24VDC, except for V430-35-B1, which is 12/24VDC
Battery7 years typical at 25°C, battery back-up for all memory sections and RTC
ClockReal-time clock functions (date and time)
EnvironmentIP66/IP65/NEMA4X (when panel mounted)
StandardCE, UL  Many of our products are also  UL Class 1 Div 2 and  GOST certified  -  please contact Unitronics

Close

Vision430™ models - Onboard I/Os

Inputs 1Outputs
ArticleSummaryDigital2
HSC/Shaft-encoder2AnalogTemperature
Measurement
Transistor 3 PWM/HSO 3RelayAnalogOperating
Voltage
V430-J-B1No onboard I/OsNoneNoneNoneNoneNoneNoneNoneNone12/24VDC
V430-J-RH210 Digital, 2 D/A Inputs1
6 Relay Outputs

123
200kHz , 32-bit
2
0-10V, 0-20mA, 4-20mA
10-bit
NoneNoneNone6None24VDC
V430-J-R3420 Digital, 2 D/A Inputs1
12 Relay Outputs
223
30kHz, 32-bit
2
0-10V, 0-20mA, 4-20mA
10-bit
NoneNoneNone12None24VDC
V430-J-TR3420 Digital, 2 D/A Inputs1
8 Relay, 4 High-speed Transistor Outputs
223
200kHz , 32-bit
2
0-10V, 0-20mA, 4-20mA
10-bit
None4
npn
4
(3 PTO)
200 kHz max
8None24VDC
V430-J-RH66 Digital, 2 D/A1,
4 Analog Inputs
6 Relay Outputs

81
200kHz, 32-bit
2
0-10V, 0-20mA, 4-20mA and
4
0-20mA, 4-20mA
10-bit
NoneNoneNone6None24VDC
V430-J-RA228 Digital, 2 D/A, 2 TC/PT100/Digital1 Inputs
8 Relay, 2 Analog Outputs
121
30kHz, 32-bit
2
0-10V, 0-20mA, 4-20mA
14-bit
2
Thermocouple, PT100
NoneNone82
0-10V, 4 -20mA
12-bit
24VDC
V430-J-TRA228 Digital, 2 D/A, 2 TC/PT100/Digital1 Inputs
4 Relay, 2 Analog, 4 High-Speed Transistor Outputs
121
200kHz, 32-bit
2
0-10V, 0-20mA, 4-20mA
14-bit
2
Thermocouple, PT100
4
npn
4
(2 PTO)
200 kHz max
42
0-10V, 4 -20mA
12-bit
24VDC
V430-J-T210 Digital, 2 D/A Inputs1
12 Transistor Outputs
123
30kHz, 32-bit
2
0-10V, 0-20mA, 4-20mA
10-bit
None12
pnp
7
0.5kHz
NoneNone24VDC
V430-J-T3820 Digital, 2 D/A Inputs1,
16 Transistor Outputs
222
30kHz, 32-bit
2
0-10V, 0-20mA, 4-20mA
10-bit
None16
pnp
7
0.5kHz
NoneNone24VDC
V430-J-TA248 Digital, 2 D/A, 2 TC/PT100/Digital1 Inputs
10 Transistor, 2 Analog Outputs
121
30kHz, 32-bit
2
0-10V, 0-20mA, 4-20mA
14-bit
2
Thermocouple, PT100
10
pnp
5
0.5kHz
None2
0-10V, 4 -20mA
12-bit
24VDC
*Notes:
  1. In some models certain inputs are adaptable via wiring and software settings, and can function as digital,high-speed, analog, and in certain models as TC or PT100.
    Adapting requires input pins. This reduces the number of digital inputs. Pin requirements:
    • Each high-speed requires 1 or 2 pins according to high-speed mode.
    • Each analog input requires 1 pin.
    • Each TC requires 2 pins per TC input
    • The first PT input requires 3 pins, and two additional pins for each additional PT input.
    Example: V430-J-RA22 offers 12 digital inputs. Implementing 2 TC inputs requires 4 pins, leaving 8 pins free. Implementing 2 PT inputs uses 5 input pins.
  2. The total number of digital inputs listed includes high-speed and adaptable inputs.
  3. The total number of digital outputs listed includes high-speed outputs.

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

I/O Expansion Modules

InputsOutputs
Expansion ModulesDigital 5HSC 5AnalogTemperature
Measurement
Weight
Measurement
Transistor6 PWM/HSO 6RelayAnalogOperating
Voltage
DigitalIO-DI8-TO88
pnp/npn
1
5kHz 16-bit
NoneNoneNone8
pnp
NoneNoneNone24VDC 9
IO-DI8-RO48
pnp/npn
1
5kHz 16-bit
NoneNoneNoneNoneNone4None24VDC 9
IO-DI8-RO88
pnp/npn
1
5kHz 16-bit
NoneNoneNoneNoneNone8None24VDC 9
EX90-DI8-RO8 38
pnp
1
5kHz 16-bit
NoneNoneNoneNoneNone8None24VDC
IO-DI1616
pnp/npn
1
5kHz 16-bit
NoneNoneNoneNoneNoneNoneNone24VDC 9
IO-TO16NoneNoneNoneNoneNone16
pnp
NoneNoneNone24VDC
IO-RO8NoneNoneNoneNoneNoneNoneNone8None24VDC 9
IO-RO16NoneNoneNoneNoneNoneNoneNone16None24VDC 9
IO-DI8ACH8 ACNoneNoneNoneNoneNoneNoneNoneNone110/220 VAC
Analog, Temperature and
Weight/Strain Measurements
IO-AI4-AO2NoneNone4
0-10V, 0-20mA, 4-20mA
12-bit
NoneNoneNoneNoneNone2
±10V
12-bit+sign,
0-20mA, 4-20mA
12-bit
24VDC
IO-PT400NoneNoneNone4
PT100/NI100/NI120
NoneNoneNoneNoneNoneNot relevant
IO-PT4KNoneNoneNone4
PT1000/NI1000
NoneNoneNoneNoneNoneNot relevant
IO-AO6XNoneNoneNoneNoneNoneNoneNoneNone6 (Isolated)
0-10V, 0-20mA, 4-20mA
12-bit
24VDC
IO-LC11
pnp
NoneNoneNone1
Loadcell / Strain gauge
2
pnp
NoneNoneNone24VDC
IO-LC31
pnp
NoneNoneNone3
Loadcell / Strain gauge
2
pnp
NoneNoneNone24VDC
IO-ATC8NoneNone8
Thermocouple, 0-10V, 0-20mA, 4-20mA
14-bit
NoneNoneNoneNoneNoneNot relevant
IO-AI8NoneNone8
0-10V, 0-20mA, 4-20mA
14-bit
NoneNoneNoneNoneNoneNoneNot relevant
XL Digital/AnalogIO-D16A3-RO1616
pnp/npn
2
30kHz 16/32-bit 8
3
0-20mA, 4-20mA
10-bit
NoneNoneNoneNone16None24VDC
IO-D16A3-TO1616
pnp/npn
1
30kHz 16/32-bit 8
3
0-20mA, 4-20mA
10-bit
NoneNone15
pnp,
1
pnp/npn
1
pnp 0.5kHz
npn 50kHz
NoneNone24VDC
EX-D16A3-RO8716
pnp/npn
2
30kHz 16/32-bit 8
3
0-20mA, 4-20mA
10-bit
NoneNoneNoneNone8None24VDC
EX-D16A3-TO16716
pnp/npn
1
30kHz 16/32-bit 8
3
0-20mA, 4-20mA
10-bit
NoneNone15
pnp
1
pnp/npn
1
pnp 0.5kHz
npn 50kHz
NoneNone24VDC
High-speed Remote I/O ModuleEXF-RC15 2,4
,10
9
pnp/npn
3
200kHz 32-bit
NoneNoneNone4
npn
4
(up to 3 PTO)
2None24VDC
*Notes:
  1. Number of supported I/Os & I/O modules varies according to module
  2. The EXF-RC15 functions as a node in a Vision UniCAN network and connects to the Vision controller via CANbus and programmed in VisiLogic. The EXF-RC15 cannot be extended as regular I/O unit.
  3. The EX90 is housed in an open casing. Only one EX90 can be connected per PLC, as a single expansion module; Expansion adapter not required.
  4. Supported by Vision series. Not supported by M91 series.
  5. The total number of digital inputs listed includes high-speed inputs.. Example: the IO-D16A3-TO16 offers a total of 16 pnp/npn inputs. You can configure I4 as a HSC and I5 as a Counter reset; this reduces the available number of digital inputs to 14.
  6. The total number of digital outputs listed includes high-speed outputs. Example: the IO-D16A3-TO16 offers a total of 16 transistor outputs. You can configure 1 to High-speed output, reducing the number of available digital outputs to 15.
  7. Functions as local adapter. Can support up to 7 I/O modules
  8. 16-bit or 32-bit, depending on the PLC
  9. Also available as 12VDC – contact us for part number

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

COM Modules

ModelsEthernetRS232/RS485Isolated RS232/RS485CANbusProfibus
SAMBAV100-17-ET2
V100-17-RS4V100-17-RS4XV100-17-CANNone
V130, V350, V4301V100-17-ET2
V100-S-ET23
V100-17-RS4V100-17-RS4XV100-17-CAN
V100-S-CAN
V100-17-PB1
V570, V560, V1040, V12102V200-19-ET2V200-19-RS4V200-19-RS4-XBuild inNone
V7004Built-inV100-17-RS4V100-17-RS4XV100-17-CANV100-17-PB1
*Notes:

1. V130/V350/V430: 1 optional port for serial or Ethernet & 1 optional port for CANbus/ Profibus.
2. V560, V570/V1040/V1210: 1 optional port for serial or Ethernet.
3. Extended temperature cards, operational temperature : -30ºC to 60ºC (-22ºF to 140ºF) – for V350-JS-TA24 only.
4. V700 is supplied with an onboard Ethernet port. 1 port may be added: serial, Profibus. and CANbus.

Close

Document Downloads

Installation Guide

File NameDownload File
V430-J-B1Download
V430-J-RH2Download
V430-J-R34Download
V430-J-TR34Download
V430-J-RH6Download
V430-J-RA22Download
V430-J-TRA22Download
V430-J-T2Download
V430-J-TA24Download
V430-J-T38Download

Technical Specifications

File NameDownload File
V430-J-B1Download
V430-J-RH2Download
V430-J-R34Download
V430-J-TR34Download
V430-J-RH6Download
V430-J-RA22Download
V430-J-TRA22Download
V430-J-T2Download
V430-J-TA24Download
V430-J-T38Download
Success stories

What does Vision430™ look like?

Watch the Vision430™ unpacking video.
