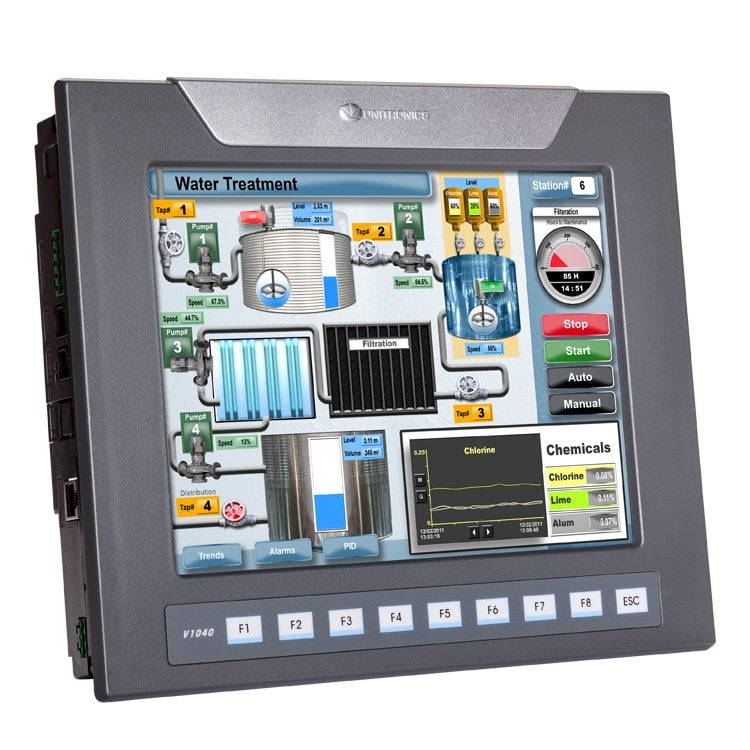

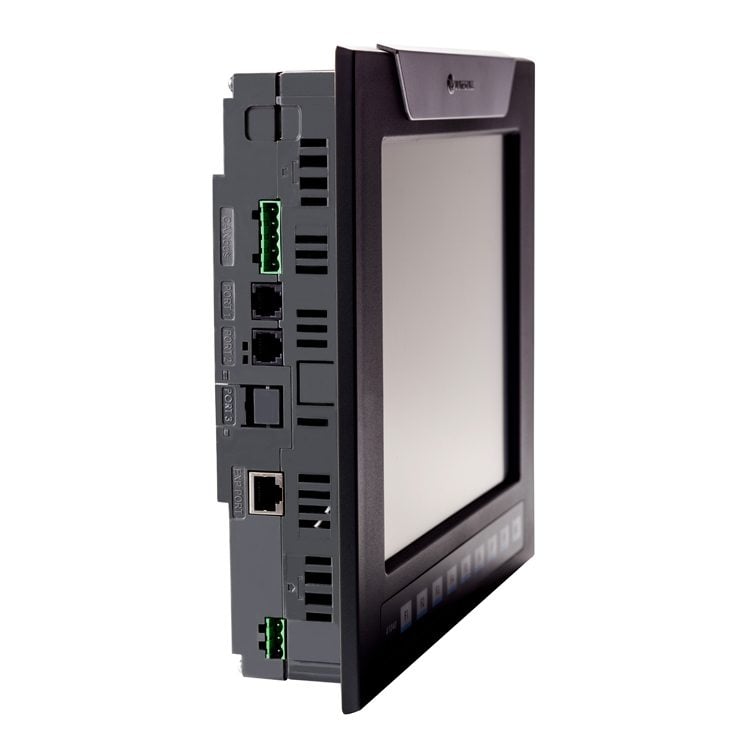

Vision1040™- Programmable Logic Controller + Built-in Quality HMI

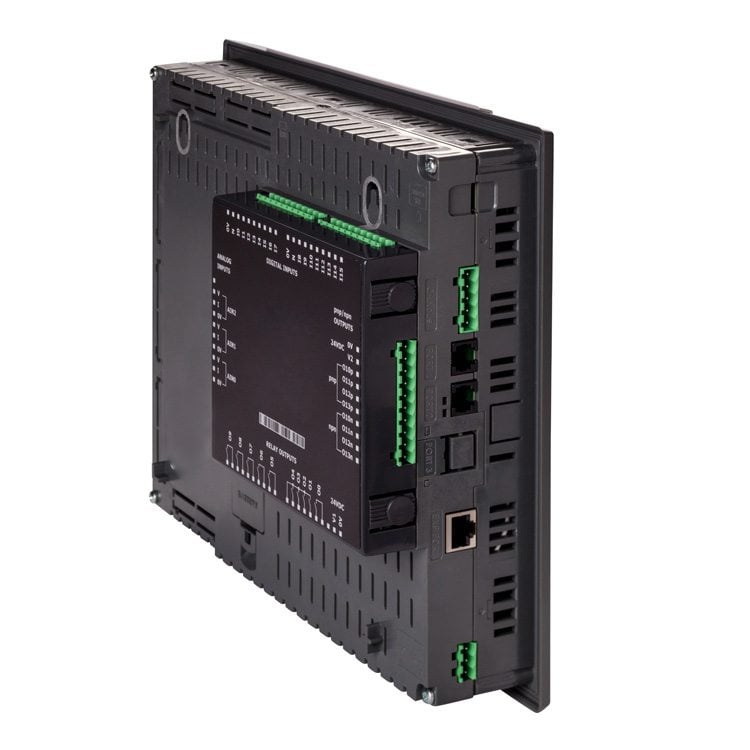

Advanced programmable logic controller from the back- big & high resolution color 10.4″  touchscreen. Snap-in I/Os for an All-in-one; expands up to 1000 I/Os.

Programmable Logic Controller + Built-in Elegant HMI Overview

PLC

  • Auto-tune PID, up to 24 independent loops
  • Recipe programs and data logging via data tables
  • MicroSD card – log, backup, clone & more
  • Function Blocks

HMI

  • High quality touchscreen
  • Multi-language display
  • Built-in Alarm Screens

Communication

  • Mini USB for programming
  • CANbus
  • Isolated RS485/RS232
  • 1 port may be added for an additional Serial/Ethernet

         Protocols:

  • MODBUS TCP
  • SNMP*
  • CANopen, CANlayer2, UniCAN
  • BACnet, KNX and M-Bus via gateway
  • FB Protocol: for any 3rd party protocol

          General Features: Web server, E-mail & SMS, Remote access utilities, 3G Modem support

I/O

Visilogic™ Software for Vision1040™

All-in-One programming environment. Simple, fast development for both Ladder and HMI applications.

  • Develop your PLC and HMI applications in one environment
  • Configure hardware & communications
  • Establish modem and data communications
  • Test and debug your programs
  • Software Utilities Suite: remote access and data management tools

Product Details

Vision1040™
I/O Options
Snap-in I/O ModulesPlug these modules directly into the back of the Vision unit to create a self-contained PLC with up to 62 I/Os. Inputs may include Digital, Analog, and Temperature measurement. Outputs may include Transistor, Relay, or Analog (sold separately)
I/O ExpansionLocal or Remote I/Os may be added via expansion port or via CANbus. Expand up to 1000 I/Os — see I/O Expansion Modules below
Program
Application MemoryApplication Logic: 2MB · Images: 40MB · Fonts: 1MB
Scan Time9µsec per 1K of typical application
Memory Operands8192 coils, 4096 registers, 512 long integers (32-bit), 256 double words (32-bit unsigned), 64 floats, 384 timers (32-bit), 32 counters. Additional non-retainable operands: 1024 X-bits, 512 X-integers, 256 X-long integers, 64 X-double words
Data Tables120K dynamic RAM data (recipe parameters, datalogs, etc.), up to 256K fixed data
SD Card (Micro)Store data logs, Alarm History, Data Tables, Trend data, export to Excel • Back up Ladder, HMI & OS, clone PLCs
USB1 USB programming port (Mini-B)
Enhanced FeaturesTrends: graph any value and display on HMI • Built-in Alarm management system• String Library: instantly switch HMI language
Operator Panel
TypeTFT LCD
Display Backlight IlluminationWhite LED
Colors65,536 colors, 16 bit resolution · Brightness- Adjustable via touchscreen or software
Display Resolution & Size800 x 600 pixels (SVGA), 10.4”
TouchscreenResistive, Analog
Keys9 programmable function keys
General
Power Supply12/24VDC
Battery7 years typical at 25°C, battery back-up for all memory sections and RTC
ClockReal-time clock functions (date and time)
EnvironmentIP65/NEMA4X (when panel mounted )
StandardCE, UL  Many of our products are also  UL Class 1 Div 2 and  GOST certified  -  please contact Unitronics

Close

Snap-in I/O Modules

InputsOutputs
Snap-in I/O
Modules		Digital (isolated) 1
HSC/Shaft-encoder1AnalogTemperature
Measurement		Transistor (isolated)2 PWM/HSO2RelayAnalogOperating
Voltage
V200-18-E1B16
pnp/npn

2
10kHz 32-bit		3
0-10 V, 0-20mA, 4-20mA
10-bit		None4
pnp/npn		 2
pnp 0.5kHz
npn 50kHz
10None24VDC
V200-18-E2B16
pnp/npn
2
10kHz 32-bit		2
0-10 V, 0-20mA, 4-20mA
10-bit		None4
pnp/npn		 2
pnp 0.5kHz
npn 50kHz
102
0-10 V,0-20mA,4-20mA
12-bit		24VDC
V200-18-E3XB18
pnp/npn		2
10kHz 32-bit		4 (Isolated)
Thermocouple, PT100, 0-10V, 0-20mA, 4-20mA
14-bit		2
pnp/npn		 2
pnp 0.5kHz
npn 50kHz
154 (Isolated)
0-10 V, 4-20mA
12-bit		24VDC
V200-18-E4XB18
pnp/npn		2
10kHz 32-bit		4 (Isolated)
Thermocouple, PT100, 0-10V, 0-20mA, 4-20mA
14-bit		15
pnp
2
npn/pnp		 2
pnp 0.5kHz
npn 50kHz
None4 (Isolated)
0-10 V, 4-20mA
12-bit		24VDC
V200-18-E5B18
pnp/npn		2
10kHz 32-bit		3
0-10 V,0-20mA,
4-20mA
10-bit		None15
pnp
2
npn/pnp		 2
pnp 0.5kHz
npn 50kHz
NoneNone24VDC
V200-18-E6B18
pnp/npn		2
10kHz 32-bit		2
Thermocouple, PT100, 0-10V, 0-20mA, 4-20mA
14-bit
3
0-10V, 0-20mA, 4-20mA
10-bit

2
pnp/npn		2
pnp 0.5kHz
npn 50kHz		152 (Isolated)
0-10 V, 4-20mA
12-bit		24VDC
V200-18-E46B318
pnp/npn		2
10kHz 32-bit		6
0-10 V,0-20mA,4-20mA
14-bit
3
0-10 V,0-20mA,4-20mA
10-bit
None2
pnp/npn		2
pnp 0.5kHz
npn 100kHz		152 (Isolated)
0-10 V, 4-20mA
12-bit		24VDC
V200-18-E62B330
pnp/npn		2
50kHz 32-bit		2
0-10 V,0-20mA,4-20mA
10-bit
None28
pnp
2
npn/pnp		2
pnp 0.5kHz
npn 100kHz		NoneNone24VDC
*Notes:
  1. The total number of digital inputs listed includes high-speed inputs.
  2. The total number of digital outputs listed includes high-speed outputs.
  3. Not yet UL certified

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

I/O Expansion Modules

InputsOutputs
Expansion ModulesDigital 5HSC 5AnalogTemperature
Measurement		Weight
Measurement		Transistor6 PWM/HSO 6RelayAnalogOperating
Voltage
DigitalIO-DI8-TO88
pnp/npn		1
5kHz 16-bit		NoneNoneNone8
pnp		NoneNoneNone24VDC 9
IO-DI8-RO48
pnp/npn		1
5kHz 16-bit		NoneNoneNoneNoneNone4None24VDC 9
IO-DI8-RO88
pnp/npn		1
5kHz 16-bit		NoneNoneNoneNoneNone8None24VDC 9
EX90-DI8-RO8 38
pnp		1
5kHz 16-bit		NoneNoneNoneNoneNone8None24VDC
IO-DI1616
pnp/npn		1
5kHz 16-bit		NoneNoneNoneNoneNoneNoneNone24VDC 9
IO-TO16NoneNoneNoneNoneNone16
pnp		NoneNoneNone24VDC
IO-RO8NoneNoneNoneNoneNoneNoneNone8None24VDC 9
IO-RO16NoneNoneNoneNoneNoneNoneNone16None24VDC 9
IO-DI8ACH8 ACNoneNoneNoneNoneNoneNoneNoneNone110/220 VAC
Analog, Temperature and
Weight/Strain Measurements		IO-AI4-AO2NoneNone4
0-10V, 0-20mA, 4-20mA
12-bit		NoneNoneNoneNoneNone2
±10V
12-bit+sign,
0-20mA, 4-20mA
12-bit		24VDC
IO-PT400NoneNoneNone4
PT100/NI100/NI120		NoneNoneNoneNoneNoneNot relevant
IO-PT4KNoneNoneNone4
PT1000/NI1000
NoneNoneNoneNoneNoneNot relevant
IO-AO6XNoneNoneNoneNoneNoneNoneNoneNone6 (Isolated)
0-10V, 0-20mA, 4-20mA
12-bit		24VDC
IO-LC11
pnp		NoneNoneNone1
Loadcell / Strain gauge
2
pnp		NoneNoneNone24VDC
IO-LC31
pnp		NoneNoneNone3
Loadcell / Strain gauge
2
pnp		NoneNoneNone24VDC
IO-ATC8NoneNone8
Thermocouple, 0-10V, 0-20mA, 4-20mA
14-bit		NoneNoneNoneNoneNoneNot relevant
IO-AI8NoneNone8
0-10V, 0-20mA, 4-20mA
14-bit		NoneNoneNoneNoneNoneNoneNot relevant
XL Digital/AnalogIO-D16A3-RO1616
pnp/npn		2
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNoneNoneNone16None24VDC
IO-D16A3-TO1616
pnp/npn		1
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNone15
pnp,
1
pnp/npn		1
pnp 0.5kHz
npn 50kHz		NoneNone24VDC
EX-D16A3-RO8716
pnp/npn		2
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNoneNoneNone8None24VDC
EX-D16A3-TO16716
pnp/npn		1
30kHz 16/32-bit 8		3
0-20mA, 4-20mA
10-bit		NoneNone15
pnp
1
pnp/npn		1
pnp 0.5kHz
npn 50kHz		NoneNone24VDC
High-speed Remote I/O ModuleEXF-RC15 2,4
,10		9
pnp/npn		3
200kHz 32-bit		NoneNoneNone4
npn		4
(up to 3 PTO)
2None24VDC
*Notes:
  1. Number of supported I/Os & I/O modules varies according to module
  2. The EXF-RC15 functions as a node in a Vision UniCAN network and connects to the Vision controller via CANbus and programmed in VisiLogic. The EXF-RC15 cannot be extended as regular I/O unit.
  3. The EX90 is housed in an open casing. Only one EX90 can be connected per PLC, as a single expansion module; Expansion adapter not required.
  4. Supported by Vision series. Not supported by M91 series.
  5. The total number of digital inputs listed includes high-speed inputs.. Example: the IO-D16A3-TO16 offers a total of 16 pnp/npn inputs. You can configure I4 as a HSC and I5 as a Counter reset; this reduces the available number of digital inputs to 14.
  6. The total number of digital outputs listed includes high-speed outputs. Example: the IO-D16A3-TO16 offers a total of 16 transistor outputs. You can configure 1 to High-speed output, reducing the number of available digital outputs to 15.
  7. Functions as local adapter. Can support up to 7 I/O modules
  8. 16-bit or 32-bit, depending on the PLC
  9. Also available as 12VDC – contact us for part number
  10. One HSC may be configured as a shaft encoder.

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

File nameDownlaod file
file1Download
file1Download
file1Download

COM Modules

ModelsEthernetRS232/RS485Isolated RS232/RS485CANbusProfibus
SAMBAV100-17-ET2
V100-17-RS4V100-17-RS4XV100-17-CANNone
V130, V350, V4301V100-17-ET2
V100-S-ET23		V100-17-RS4V100-17-RS4XV100-17-CAN
V100-S-CAN		V100-17-PB1
V570, V560, V1040, V12102V200-19-ET2V200-19-RS4V200-19-RS4-XBuild inNone
V7004Built-inV100-17-RS4V100-17-RS4XV100-17-CANV100-17-PB1
*Notes:

1. V130/V350/V430: 1 optional port for serial or Ethernet & 1 optional port for CANbus/ Profibus.
2. V560, V570/V1040/V1210: 1 optional port for serial or Ethernet.
3. Extended temperature cards, operational temperature : -30ºC to 60ºC (-22ºF to 140ºF) – for V350-JS-TA24 only.
4. V700 is supplied with an onboard Ethernet port. 1 port may be added: serial, Profibus. and CANbus.

Close
