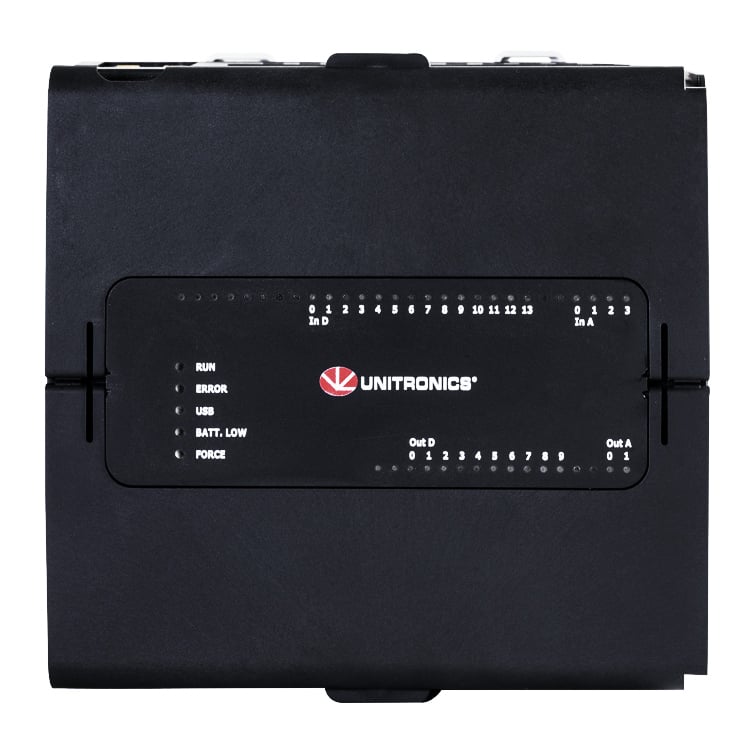

UniStream® PLC- Robust PLC Controller with Virtual HMI

Powerful multi-function PLC controller that provides users with advanced communication support, variety of built-in I/O configurations, and Virtual HMI.

Virtual HMI- the PLC stores and runs the program logic as well as the HMI user application within the PLC itself. This brings a unique advantage: you can view and operate your machine, or access your process via any mobile phone,  PC,  or remote display device.

Main features:  Ethernet/IP,  MQTT,  SNMP,  SQL,  Web Server,  FTP,  SNMP,  and more.

Available in Cloud series – a PLC with built-in, no-cost cloud services. You simply connect the PLC to ‘UniCloud’, Unitroncis cloud service, design a no-code dashboard, and go live in less than 30 minutes!

Powerful PLC Controller Overview

  • Auto-tune PID, up to 64 independent loops2
  • Recipes & data logging via data tables & sampling1
  • MicroSD card – log, backup, clone & more1
  • Function Blocks & Structs
  1. Pro (B10) and Standard (B5) only
  2. Basic (B3) supports up to 2 independent PID loops
  • Full HMI functionality
  • Support different resolution type
  • Includes Drag & Drop graphic library
  • Multi-language display
  • Built-in Alarm Screens
  • PDF viewer1
  • Multi-level password protection –easy and fast
  1. Pro (B10) and Standard (B5) only

Built-in ports:

  • 2 Ethernet TCP/IP
  • 1 USB host
  • 1 Mini USB for programming1

Add-on ports2:

  • 1 CANbus
  • 1 RS485
  • 1 RS232
  • 1 EtherCAT Master

Protocols:

  • MQTT Client
  • EtherNet/IP
  • EtherCAT
  • MODBUS TCP
  • CANopen, CANlayer2, UniCAN
  • SNMP
  • BACnet, KNX and M-Bus via gateway
  • Message Composer for third party protocols

General Features:

  • SQL Client3
  • Web Server3
  • E-mail & SMS
  • Remote access via VNC
  • FTP server & client1
  • GPRS
  1. Pro (B10) and Standard (B5) only
  2. Up to two serial modules for B10/B5 and one for B3
  3. Pro (B10) only
  1. Pro (B10) and Standard (B5) only

UniLogic® Software for UniStream®

All-in-One – program all aspects of your application:

  • Code Ladder
  • Design beautiful HMI screens and Web pages
  • Configure hardware
  • Set up and implement communications
  • Build-it-once, create & reuse Ladder functions, screens, webpages and more

New! UniCloud.

The Complete, No-Code, IIoT Cloud Platform for Unitronics Controllers.

No cloud development skills needed!

Go Cloud without changing a line in your control program!

Product Details

UniStream® PLC
I/O Options
Number of I/Os (Built-in, local and remote)Up to 2,048 I/O points
Built-in I/O or Uni-COM ModulesAccording to model and add-on model (see table below)
Local Uni-I/O™ ModulesTo add local I/Os, use UAG I/O Expansion Adapters. These adapters provide the connection point for standard UniStream Uni-I/O™ modules
Remote I/O ExpansionUse UniStream Ethernet-based Remote I/O adapters to add I/Os via Ethernet (See I/O Expansion Modules table)
Bit Operation0.13 µs
Ladder Memory1 MB
External MemoryMicroSD or MicroSDHC card
Size: up to 32GB
Data Speed: up to 200Mbps
Power Supply24VDC (B1 support 12V/24VDC)
Backup BatteryModel: 3V CR2032 Lithium battery (5)

Battery lifetime: 4 years typical, at 25°C
Battery Low detection and indication (via BATT. LOW indicator and via System
Tag).
Communication
Ports2 Ethernet •1 USB host • 1 mini USB device for programming1
Protocols• MQTT Client • EtherNet/IP • Modbus TCP • CANopen, CANlayer2, UniCAN • SNMP
• BACnet, KNX and M-Bus via gateway
Viewing Area
Height x Width (mm)
Height x Width (mm) 108 x 64.8
Environment
ProtectionIP20, NEMA1
Operating Temperature-20°C to 55°C (-4°F to 131°F)
*Notes:
  1. Pro (B10) and Standard (B5) only

Close

Display

UniStream® Display

Product type

UniStream Display
UniStream Display

UniStream Display


UniStream Display

Article number

USL-050-B05USL-070-B05USL-101-B05USL-156-B05

Size

5"7"10.1"15.6"

Resolution

800x480 (WVGA)
800x480 (WVGA)
1024 x 600
(WSVGA)
1366x768

Viewing Area
Height x Width (mm)

108 x 64.8154.08 x 85.92
222.72 x 125.28
344.23 x 193.53

Operating Temperature

-20°C to 55°C (-4°F to 131°F)0°C to 50°C (32°F to 122°F)

Type

TFT, LCD, Touch HMI Panel

Protection

Front face: IP65/66, NEMA 4X
Rear side: IP20, NEMA1
Front face1 : IP65/66, NEMA 4X
Rear side: IP20, NEMA1
  1. UniStream complies with IP66 and NEMA4X only if audio-jack seal is installed. Refer to HMI panel installation guide.

Close

UniStream PLC Built-in I/Os

Inputs 1Outputs
Article3SummaryDigital
(Isolated)
HSC/Shaft-encoder *1
AnalogTemperature
inputs, RTD/TC
Transistor *2
(Isolated)
PWM *2
RelayAnalogOperating
Voltage
USC-x5-B1
USC-x10-B1
No built-in I/OsNoneNoneNoneNoneNoneNoneNoneNone12/24VDC
USC-x5-TR22
USC-x10-TR22
10 Digital,
2 Analog Inputs,
2 Transistor outputs, npn, including 2 PWM outputs.
8 Relay outputs
10
Sink/Source
None2
0-10V, 0-20mA,
4-20mA
12-bit
None2
Sink (npn)
2
30kHz
8
None24VDC
USC-x5-T24
USC-x10-T24
10 Digital,
2 Analog Inputs, 12 Transistor outputs, pnp, including 2 PWM outputs.
10
Sink/Source
None2
0-10V, 0-20mA,
4-20mA
12-bit
None12
Source (pnp)
2
3kHz
NoneNone24VDC
USC-x5-RA28
USC-x10-RA28
14 Digital,
including 2 HSC,
2 Analog Inputs,
2 Temperature inputs,
8 Relay outputs,
2 Analog outputs
14
Sink/Source


2
90kHz 32-bit



2 (isolated)
0-10V, 0-20mA, 4-20mA
14-bit
2 (isolated)
Thermocouple,
PT100/NI100/NI120/
PT1000/NI1000
NoneNone82
0-10V,12-bit,±10V
11-bit+sign
0-20mA, 4-20mA
12-bit
24VDC

USC-x5-TA30
USC-x10-TA30
14 Digital inputs, including 2 HSC,
2 Analog inputs,
2 Temperature inputs,
10 Transistor outputs, pnp, including 2 PWM outputs,
2 Analog outputs
14
Sink/Source
2
90kHz 32-bit
2 (isolated)
0-10V, 0-20mA, 4-20mA
14-bit
2 (isolated)
Thermocouple,
PT100/NI100/NI120/
PT1000/NI1000
10
Source (pnp)
2
3kHz
None2
0-10V,12-bit, ±10V
11-bit+sign
0-20mA, 4-20mA
12-bit
24VDC

USC-x5-R38
USC-x10-R38
24 Digital inputs, including 4 HSC,
2 Analog Inputs,
12 relay outputs
24
Sink/Source
4
90kHz 32-bit
2
0-10V, 0-20mA,
4-20mA
12-bit
NoneNoneNone12None24VDC

USC-x5-T42
USC-x10-T42
24 Digital inputs, including 4 HSC,
2 Analog inputs,
16 Transistor outputs, pnp, including 2 PWM outputs
24
Sink/Source
4
90kHz 32-bit
2
0-10V, 0-20mA,
4-20mA
12-bit
None16
Source (pnp)
2
3kHz
NoneNone24VDC

USC-x3-R20
10 Digital Inputs,
2 Analog Inputs,
8 Relay Outputs
10
Sink/Source
-2
0-10V, 0-20mA,
4-20mA
12-bit
-824VDC
USC-x3-T20
10 Digital inputs,
2 Analog Inputs,
8 Transistor Outputs, pnp,
including
2 PWM Outputs
10
Sink/Source
2
0-10V, 0-20mA,
4-20mA
12-bit
-8
Source (pnp)
2
3kHz
--24VDC
--NEW--

USC-x5-TA32
USC-x10-TA32
13 Digital inputs, including 2
HSC,
6 Analog inputs,
2 Temperature inputs,
8 Transistor outputs, pnp,
including 2 PWM outputs,
3 Analog outputs
13-Sink / Source2
90kHz 32-bit
2 (isolated)
0-10V, 0-20mA,
4-20mA,
14-bit
4 (non-isolated)
0-10V, 0-20mA,
4-20mA,
12-bit
2 (isolated)
Thermocouple,
PT100/NI100/NI120/
PT1000/NI1000
8
Source (pnp)
2
3kHz
-3
0-10V,12-bit, ±10V
11-bit+sign
0-20mA, 4-20mA
12-bit
24VDC
*Notes:
  1. Note that the high-speed inputs are included in the total number of digital inputs.
  2. Note that the PWM outputs are included in the total number of transistor outputs.
  3. Select B for UniStream with UniCloud enabled functionality
    Select C for UniStream Cloud series with built-in 5 years UniCloud start-up subscription
    with no additional payment required for this period

Close

UniStream Remote I/O

ArticleDescription
AdapterURB-TCPUniStream Remote IO Eth. Adapter
URB-TCP2UniStream Remote IO Adapter, 6 Modules
URB-EC1Unistream EtherCAT Remote IO adaptor 16 Modules
Inputs

Inputs

DigitalAnalog
URD-08008 Digital inputs (sink or source), 10RTB8-
URD-1600-8
16 Digital inputs (sink or source), 18RTB
16-
URD-3200-4
32 Digital inputs (sink or source), 40Pin
32-
URD-0400B
4 Digital inputs, 120VAC, 10RTB
4
-
URD-0400C
4 Digital inputs, 240VAC, 10RTB
4-
URD-0200E
2, 24VDC, High Speed / Encoder Inputs, 10RTD
2
-
URD-0200D
2, 5VDC, High Speed / Encoder Inputs, 10RTD
2-
URA-0400O4 Analog Current Inputs 12bit, 10RTB-4
URA-0800O8 Analog Current Inputs 12bit, 10RTB-8
URA-1600O-8
16 Analog Current Inputs 12bit, 18RTB
--16
URA-0400P4 Analog Voltage Inputs 12bit, 10RTB-4
URA-0800P8 Analog Voltage Inputs 12bit, 10RTB-8
URA-1600P-8
16 Analog Voltage Inputs 12bit, 18RTB
-16
URA-0400T4 Analog Current Inputs 16bit, 10RTB-4
URA-0800T
8 Analog Current Inputs 16bit, 10RTB
-8
URA-1600T-8
16 Analog Current Inputs 16bit, 18RTB
-16
URA-0400U4 Analog Voltage Inputs 16bit, 10RTB-4
URA-0800U
8 Analog Voltage Inputs 16bit, 10RTB
-8
URA-1600U-8
16 Analog Voltage Inputs 16bit, 18RTB
-16
URS-04RT
4 RTD / Resistance Input, 10RTB
-4
URS-08RT-2
8 RTD / Resistance Input, 20Pin
-8
URS-04TC
4 Thermocouple / mV Input, 10RTB
-4
URS-08TC-2
8 Thermocouple / mV Input, 20Pin
-8
URS-02LC-8
2 Load Cells Input, 18RTB
-2
Outputs

Outputs

TransistorRelayAnalog
URD-0004RH4 Relay Outputs, 10RTB-4-
URD-0004SK
4 Solid State Relay Outputs, 240V, 10RTB
-4-
URD-0004SM
4 Solid State Relay Outputs, 110V, 10RTB
-4-
URD-0004SN
4 Solid State Relay Outputs, 24V, 10RTB
-4-
URD-0008NH8 Digital Outputs (Sink), 10RTB8--
URD-0008NI
8 Digital Outputs (Sink), 10RTB
8--
URD-0016NG-8
16 Digital Outputs (Sink), 18RTB
16--
URD-0032NG-4
32 Digital Outputs (Sink), 40Pin
32--
URD-0008CH8 Digital Outputs (Source), 10RTB8--
URD-0008CI
8 Digital Outputs (Source), 10RTB
8--
URD-0016CG-8
16 Digital Outputs (Source), 18RTB
16--
URD-0032CG-4
32 Digital Outputs (Source), 40Pin
32--
URD-02PU
2 Pulse Outputs, 10RTB
2--
URD-02PW
2 PWM Outputs, 10RTB
2--
URD-04PW
4 PWM Outputs, 10RTB
4--
URA-0004W4 Analog Current Outputs 12bit, 10RTB--4
URA-0008W8 Analog Current Outputs 12bit, 10RTB--8
URA-0004X4 Analog Voltage Outputs 12bit, 10RTB--4
URA-0008X8 Analog Voltage Outputs 12bit, 10RTB--8
URA-0016X-8
16 Analog Voltage Outputs 12bit, 18RTB
--16
URA-0004Y4 Analog Current Outputs 16bit, 10RTB--4
URA-0008Y
8 Analog Current Outputs 16bit, 10RTB
--8
URA-0004Z4 Analog Voltage Outputs 16bit, 10RTB--4
URA-0008Z8 Analog Voltage Outputs 16bit, 10RTB
--8
URA-0016Z-8
16 Analog Voltage Outputs 16bit, 18RTB
--16
PowerURP-PS24VInput 24VDC, Output system Power 5VDC/1A
URP-C0V0V
8, 0VDC Potential Disctributor
URP-C24V24V
8, 24VDC Potential Disctributor
URP-C0V24V
4, 24VDC and 4, 0VDC Potential Disctributor
URP-PDIST
External Universal Power Distributor
URP-PSHIELD
External Universal Shield Distributor

Close

Uni-COM™ Modules

Article1Communication Ports
UAC-CB-01RS2
Uni-COM: 1x RS232 port
UAC-CB-01RS4Uni-COM: 1x RS485 port
UAC-CB-01CANUni-COM: 1x CANbus port
UAC-01EC2Uni-COM: 1X EtherCAT Master Port
  1. All Uni-COM Modules- up to 2 serial modules and 1 CANbus module. Basic (B3) version support 1 serial module.

Close

Uni-Local Expansion Adapters

ArticleDescription
UAG-XK125Short Range Kit, 125 cm
UAG-XKP125Short Range + embedded Power Supply Kit, 125 cm
UAG-XK300Short Range Kit, 300 cm
UAG-XKP300Short Range Kit + embedded Power Supply, 300 cm
UAG-XKPLXXXXLong Range + embedded Power Supply, lengths: 600, 1200, 1500, 2000, 3000cm

Close

Uni-I/O™ Modules

InputsOutputs
Expansion Modules
article
Digital (Isolated)HSC/Shaft-encoder 4AnalogTemperature
Measurement
Weight
Measurement
Transistor (Isolated) 5PWM/HSO 5RelayAnalogOperating
Voltage
Digital Modules
(Isolated)
UID-160016
Sink/Source
NoneNoneNoneNoneNoneNoneNoneNone24VDC
UID-0808T8
Sink/Source
NoneNoneNoneNone8
Source(pnp)
NoneNoneNone24VDC
UID-W1616T 316
Sink/Source
NoneNoneNoneNone16
Source(pnp)
NoneNoneNone24VDC
UID-0808THS 18
Sink/Source
2
250kHz 32-bit
NoneNoneNone8
Source(pnp)
2 2
250kHz
2
3kHz
NoneNone24VDC
UID-0016TNoneNoneNoneNoneNone16
Source(pnp)
NoneNoneNone24VDC
UID-0808R8
Sink/Source
NoneNoneNoneNoneNoneNone8None24VDC
UID-W1616R 316
Sink/Source
NoneNoneNoneNoneNoneNone16None24VDC
UID-0016RNoneNoneNoneNoneNoneNoneNone16None24VDC
Analog and TemperatureUIA-0006NoneNoneNoneNoneNoneNoneNoneNone6
0-10V
14-bit
±10V
13-bit+sign
0-20mA, 4-20mA
13-bit
24VDC
UIA-0402NNoneNone4
0-10V, 0-20mA, 4-20mA
13-bit
NoneNoneNoneNoneNone2
0-10V
14-bit
±10V
13-bit+sign
0-20mA, 4-20mA
13-bit
24VDC
UIA-0800NNoneNone8
0-10V, 0-20mA, 4-20mA
13-bit
NoneNoneNoneNoneNoneNoneNot relevant
UIA-0800NHNoneNone8
0-20V, 0-20mA, 4-20mA
With HART communication
NoneNoneNoneNoneNoneNoneNot relevant
UIS-04PTNNoneNoneNone4
PT100/NI100/NI120
NoneNoneNoneNoneNoneNot relevant
UIS-04PTKNNoneNoneNone4
PT1000/NI1000/NI1200
NoneNoneNoneNoneNoneNot relevant
UIS-08TCNoneNoneNone8 (Isolated)
Thermocouple7
NoneNoneNoneNoneNone24VDC
Digital/Analog ModulesUIS-WCB1 1 , 3 10
Sink/Source
2
10kH z 32 bit
2 (Isolated)
0-10V, 0-20mA, 4-20mA
14-bit
2 (Isolated)
Thermocouple, PT100/NI100/NI120
None2 (Not Isolated)
Sink (npn)
2
250kHz
82
0-10V
14-bit
.±10V
13-bit+sign
0-20mA, 4-20mA
13-bit
24VDC
UIS-WCB2 1 , 3 10
Sink/Source
2
10kH z 32 bit
2 (Isolated)
0-10V, 0-20mA, 4-20mA
14-bit
2 (Isolated)
Thermocouple, PT100/NI100/NI120
None8
Source (pnp)
2 (Not Isolated)
Sink (npn)
2
250kHz
(Sink outputs only)
None2
0-10V
14-bit
.±10V
13-bit+sign
0-20mA, 4-20mA
13-bit
24VDC
*Notes:
  1. This module utilizes two high speed blocks that can each be assigned either to the inputs or to the outputs.
  2. 2 outputs are high speed, up to 250KHz , and may function as normal or high-speed PWM outputs (same frequency and different duty-cycles). 2 outputs are normal speed, and may function as normal-speed PWM outputs (same frequency but different duty-cycles).
  3. 1 wide I/O modules width = 1.5 slim I/O modules width
  4. Note that the high-speed inputs are included in the total number of digital inputs.
  5. Note that the high-speed outputs are included in the total number of digital outputs.
  6. Not isolated.
  7. Channel to channel isolated.

*This page provides a general overview of Unitronics products.

For more details, please check the complete technical specifications for each product, located at the end of the page.

Close

Document Downloads

EtherCAT

File NameDownload File
UAC-01EC Install GuideDownload
UAC-01EC SpecificationDownload
EtherCAT BrochureDownload

Users Guide

File Name*Download File
USL-050-B05Download
USL-070-B05Download
USL-101-B05Download
USL-156-B05Download
USC-x5-RA28Download
USC-x10-RA28Download
USC-x5-TA30Download
USC-x10-TA30Download
USC-x5-R38Download
USC-x10-R38Download
USC-x5-T42Download
USC-x10-T42Download
USC-x5-B1Download
USC-x10-B1Download
USC-x5-TR22Download
USC-x10-TR22Download
USC-x5-T24Download
USC-x10-T24Download
USC-x3-R20Download
USC-x3-T20Download
UAC-CB-01RS2Download
UAC-CB-01RS4Download
UAC-CB-01CANDownload

*Notes:

  • Select B for UniStream with UniCloud enabled functionality
  • Select C for UniStream Cloud series with built-in 5 years UniCloud start-up subscription with no additional payment required for this period

IO-Link Users Guide

UniStream Remote I/O- User Manual

File NameDownload File
UniStream Remote I/O- User ManualDownload

2D Drawings

File NameDownload File
UniStream PLC - 2DDownload

3D Drawings

File NameDownload File
UniStream PLC - 3DDownload

Unistream PLC- Models Comparison (B3, B5, B10)

File NameDownload File
Unistream PLC- Models Comparison Download
Success story
