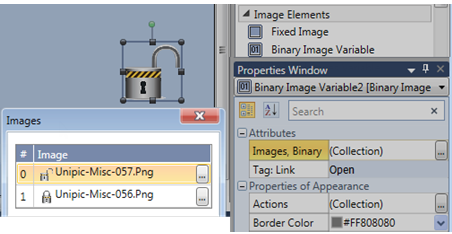

The Binary Image element shown here is open to the Images: Binary Property, displaying the images that show the status of the linked tag.
Image Elements include:
HMI Image elements allow you to display simple, fixed images, and variable images based on run-time conditions.
|
The Binary Image element shown here is open to the Images: Binary Property, displaying the images that show the status of the linked tag. Image Elements include: |
|

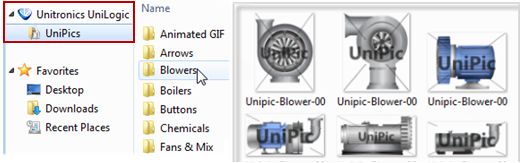

Note that UniLogic's image library, UniPics, offers a broad range of images.
