Send/Receive SMS Messages

1. Click Modems in the Solution Explorer.

2. Click Add Modem.



3. Click the fields to edit Modem parameters Modem Name, Type, and Signal Quality Refresh rate fields.

4. Assign a Communication Channel.
   The parameter Port defines the communication channel between controller and modem. You can select a channel that is physically located on a communication module, or the Panel USB Port.



5. To enable the modem to accept incoming SMS messages and add them to the SMS Received Queue, you must check the Receive SMS option.

6. To filter the phone numbers from which incoming message may be received, click Authorized Numbers and add permissible phone numbers to the list.

Checking SMS Received adds the message to the queue. However, the only way for the controller to receive the message is via the Receive SMS ladder function



When you add the modem, the program creates a struct that you can use in your program.

Name	Data Type	Definition
Success	Bit	ON=Modem Initialized Successfully
Fail	Bit	ON=Modem Initialization Failed
Status	UINT32	Code  Message 0 = No Errors 1 = Function Started 2 = Function in Progress -1 = General initialization error -2 = Pin code Error -3 = Baud Rate Error -4 = Signal Quality Error -5 = Router name error -6 = Save router parameter error -7 = Modem GPRS error -9 = Router General Error -10 = Router signal quality error -11 = Router session ID error -12 = Router network type error -13 = Router GPS error -14 = Router mobile traffic error -17 = Router Model Name error -99 = Modem/Router not connected -100 = Modem/Router powered off
Signal Quality	UINT8	Written here by the controller
Modem Name	ASCII	Entered by user when defining the modem.
PIN Code	ASCII	Entered by user when defining the modem.
GPRS APN	ASCII	Entered by user when defining the modem.
GPRS User	ASCII	Entered by user when defining the modem.
GPRS Password	ASCII	Entered by user when defining the modem.
GPRS IP	ASCII	Entered by user when defining the modem.
SMS Received Queue	UINT8	This is the number of SMS messages that are in the modem queue, that have not been transferrer to the controller. Note that the only way for the controller to accept the message is via the Receive SMS ladder function.



SMS message can contain both fixed text and variables.

Note	The length of the SMS message is limited by whether you have enabled non-English SMS characters in the Send SMS Ladder Element English-only 150 ASCII character maximum. Non-English enabled: 70 character maximum.

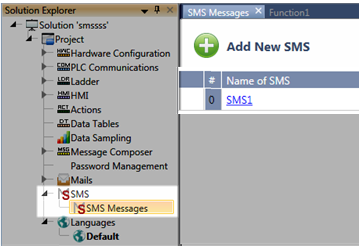

1. Select SMS Messages in the Solution Explorer.

2. Click the Add New SMS button.

3. Click the SMS message to open it up and define it.

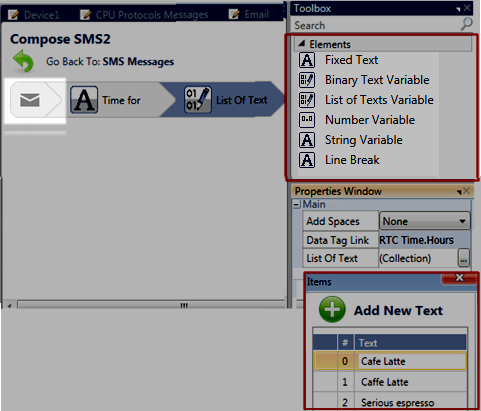

4. From the Toolbox, select elements to add to the message, and configure these elements via the Properties Window.

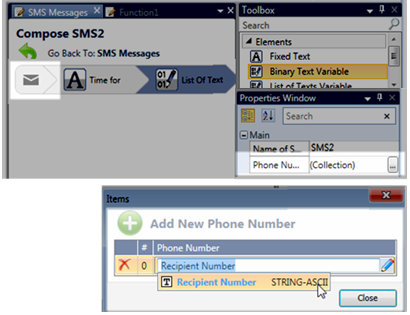

5. Add phone numbers by clicking the Message header icon to open the properties window, and then click Phone Numbers Collection.

6. Click Add New Phone Number, and link a String-ASCII data tag.

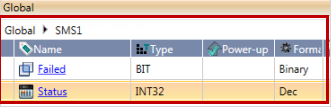

SMS Message Struct

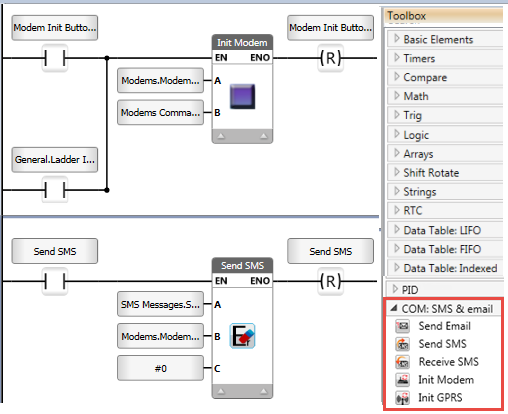

1. Place a COM>: SMS & email> Initialize Modem function in the Ladder.
   In order to ensure that the modem will be initialized at power-up, place it after a direct contact.


2. Place a Send SMS ladder element after your desired logic send conditions.

3. In the Send SMS element:

1. Click parameter A to open the list of SMS messages and select one

2. Click parameter B and select the modem that will send the SMS.

3. If you are using a non-English characters in your SMS message, change parameter C to #1, otherwise leave it as default.

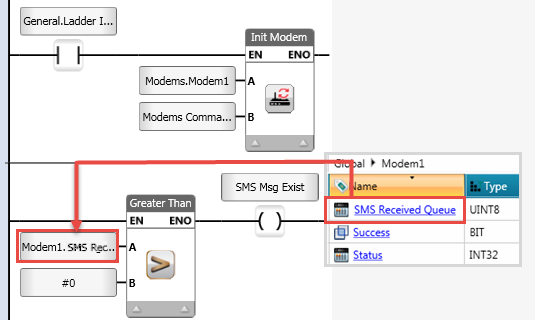

1. Place a COM>: SMS & email> Initialize Modem function in the Ladder.
   In order to ensure that the modem will be initialized at power-up, place it after a direct contact.

2. Check that there are messages in the SMS Received Queue.

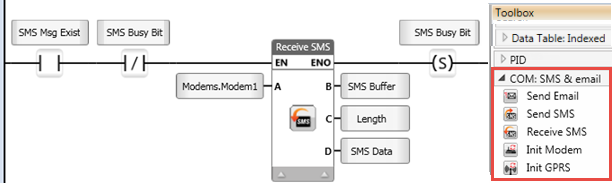

3. Place a Receive SMS ladder element after your desired logic send conditions.

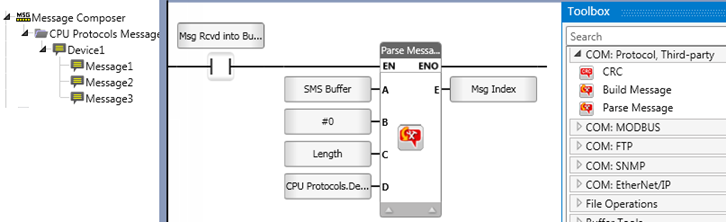

You can parse your received message via the Third-party Protocol function, Parse.
