LF: Send SMS

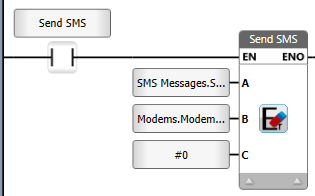

Use this to send an SMS message in your Ladder.

	Parameter Name	Purpose
A	SMS message	Select a message that has been defined in SMS>SMS Messages
B	Modem	Select a modem that has been defined in PLC Communications>Modems
C	Enable non-English SMS characters	Assign a power-up value of 1 to enable non-English SMS characters

When you create an SMS message, UniLogic automatically creates a supporting struct.

Name	Data Type	Definition
Send:Success	Bit	ON=Sent Successfully
Send: Fail	Bit	ON=Send Failed
Status	UINT32	Error	SMS Send Status Message
		0	No errors
		1	Function start
		2	Function in Progress
		-1	Modem only: General COM error. Please check the physical connections.
		-2	Modem only: Sent message error
		-3	Modem only: Telephone number format error Note that the number cannot contain spaces.
		-4	Modem only: Parse Message error. This may result because: - The elements in the message may contain a 'null' character - Message length exceed the maximum limit,150 for English-only, 70 for non-English characters. Note that if the message contains list elements, and the lists contain many members, this may cause the message to exceed the maximum limit.
		-5	SMS Last Error
		-6	Router only: Incorrect Username or Password to Router's SMS module
		-7	Router only: General Error. Resend message; if error persists, check the Router authorizations.
