button on the toolbar.Use Hardware Configuration to define:
The controller model
Your selection defines the options available for your current project, such as I/Os and communications options.
I/Os
You can link operands to I/Os, whether located on-board or on I/O Expansion Modules.
Hardware Configuration opens automatically when you first create a new project. In order to open Hardware Configuration in an existing project, either select Hardware Configuration from the View menu or click the button on the toolbar.

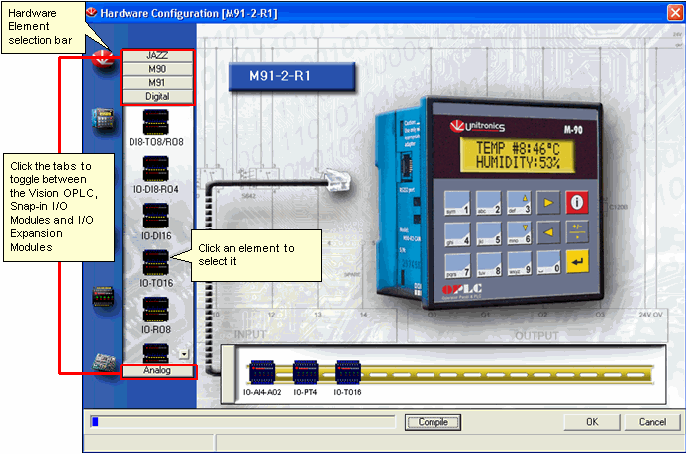

Click on the appropriate icon to select the controller model and any I/O Expansion modules required by your application.
After you select the controller model or I/O Expansion Modules connected to the controller, you can configure I/Os: analog, digital, high-speed counter/shaft-encoder/frequency measurers, PT100; and PWM high-speed outputs.
|
Note ♦ |
U90 Ladder will not download a project to a controller unless that model is the one selected in Hardware Configuration. |
Click Hardware Configuration on the Standard toolbar to open the Hardware Configuration window.

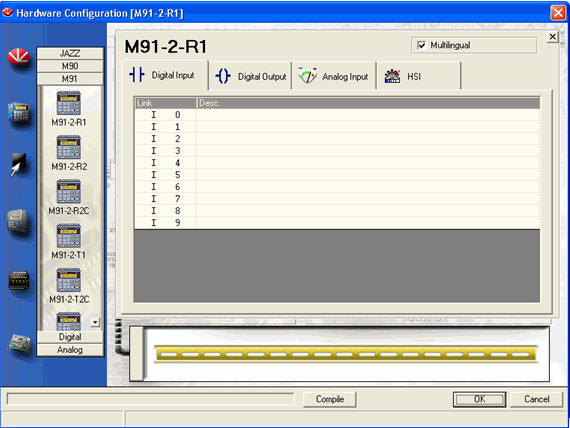

Select the appropriate model.
Hardware Configuration displays the options for that model.
|
Note ♦ |
The HMI display options differ from model to model. Models may support 1 or 2 text lines. In addition, some models support character sets from different languages (mulitilingual models). |
Hardware Configuration is featured in several sample applications, such as the applications ' HSC x 1000', 'HSC saved', 'High-speed Output', 'Motor Speed', and 'Expansion HSC Reset'. These applications may be found by selecting Sample U90 Projects from the Help Menu.
