HE: List Box

This control displays a non-scrollable list of mutually exclusive items. These items are listed in the parameter Options: List.

The container must be large enough to contain the list.

Radio Button Attributes

Options: List

This list holds the Options that are shown in a User Control.

Each Option is assigned an Index Number in the List.

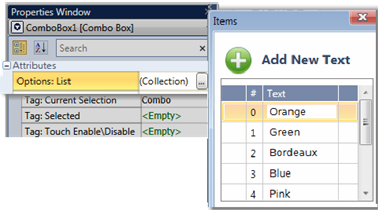

To edit the List, click Collection on the right.

Tag: Current Selection

The linked register holds the Index Number of the Option that the end-user selects.

Tag: Selected

Link a bit; this bit turns ON when the end user selects an Option.

The bit stays ON until it is reset by the application.

Tag:Touch Enable/Disable

The Touch property of this element is enabled by default.
Assign a Touch Enable\ Disable bit to allow you to enable or disable the element’s Touch property.

Background Color/Image

Click the drop-down arrow to the right, and then:

To open the color palette, click the tab on the left.
To a select an image, click the tab on the right.

Text Font

Click Font Properties to select a font and style it.

To edit the List, click Font Properties on the right.

General Properties

HMI Elements: Properties of Appearance

HMI Elements: Size and Position
