The Data Table widget enables your users to view, edit, and enter data into Data Tables via an HMI display
To use the widget:

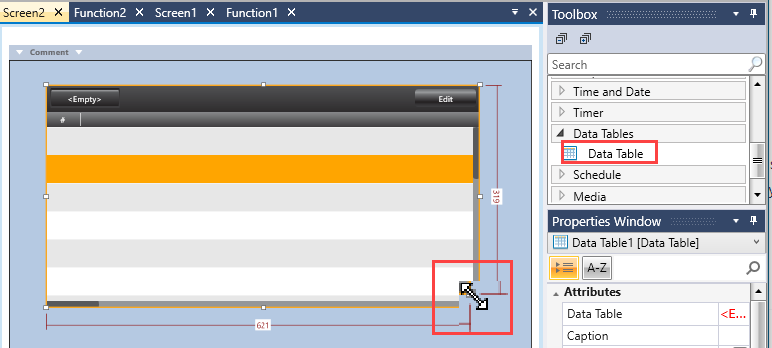

Click the Data Table widget in the Toolbox and drag & drop it onto the display, then drag the borders to resize it.
Define the Attributes and Properties of Appearance.
Note that the end-user must touch or click the Edit button to enable data editing.
|
Property Name |
Definition |
|
Data Table Name |
Select the Data Table to show on screen. |
|
Caption |
Caption the Data Table if desired. |
|

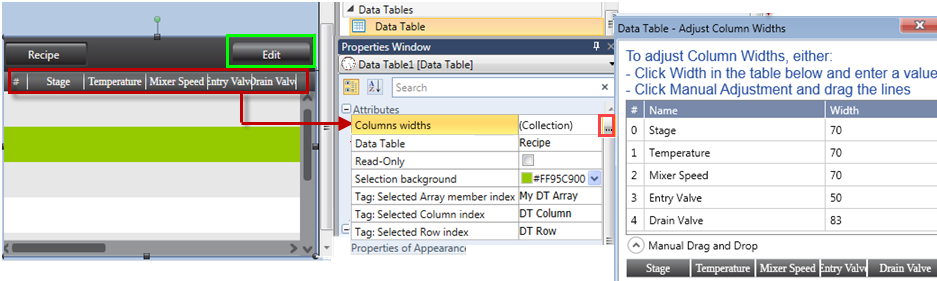

Columns Width |
The columns of the Data Table are defined by the linked Struct. In addition to defining the width, you can also select to hide a column by unchecking 'Is Visible'. |
|
Read-only |
If this is checked, the user will not be able to edit the values. |
|
Button: Select Table |
Check this to display a button that the user can click to navigate to other tables defined in the Web Server. |
|
Button: UDTF Files |
Check this to display a button that the user can click to view any UDTF files that are stored on the UniStream SD card. |
|
Tag: Selected Row |
Link to a tag to store values entered via browser and use them in your application. |
|
Tag:Column index |
|
|
Tag: Selected Array member |
|
|
Lock Element |
Check this to lock the Widget into place and prevent it being moved to another position. |
|
Properties of Appearance |
Use these options to set selected row background, font size and color, row size and color, scroll bar width and more. |
|
Element RestrictionsElement Restrictions allow the widget to be rendered invisible, and appear only to users who log in with the correct user level. Note that you must enable User Access in order to reveal the option.
|
|
|
Size and Position |
You can enter values to position and resize the table, or use the table's handles with your cursor. |
Trend Style
You can select to display a trend as Standard or FIFO. When the user views a Standard Trend, the user must stop the sampling, and select the file to view. The FIFO Trend allows the user to view the last Trend file, and then to page through the files in chronological order. If the history contains 15 files, where File_1 is the oldest and the user is currently viewing the active file, paging back will display File_15. the user can then use the Slider to navigate back and forth in the file.

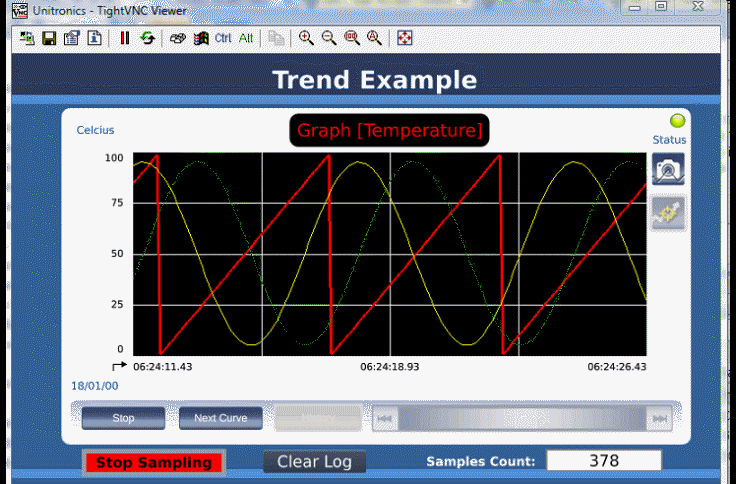

Standard Table

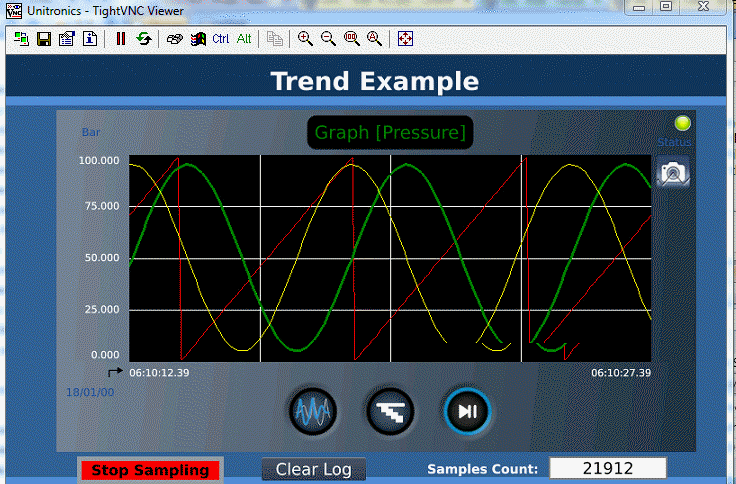

FIFO Table
