Display Integer values as ASCII or Hexadecimal

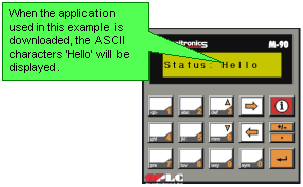

When the application shown in the example below is downloaded, the ASCII characters 'Hello' will be displayed on the display screen when Key #3 is pressed.

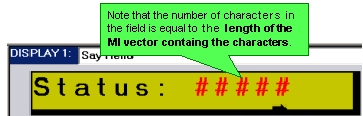

1. Create a Variable Field in a Display, then attach a Variable.

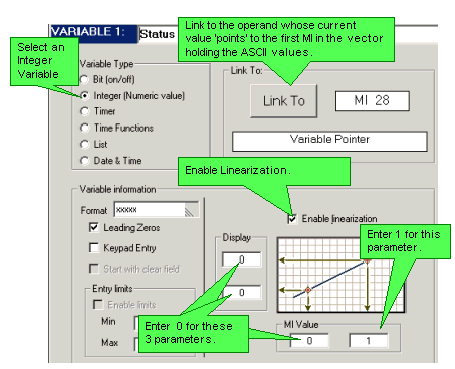

2. Define the Variable as shown below.

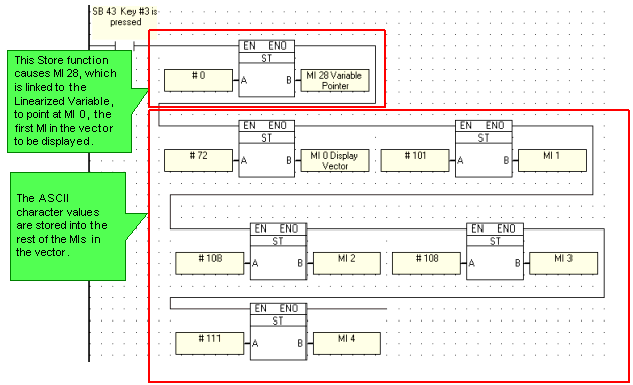

3. The Ladder net below sets the Variable pointer and stores ASCII values into the MI vector.



When the application shown in the example below is downloaded, the hexadecimal value of 63 will be displayed on the display screen.

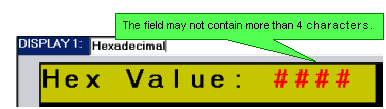

1. Create a Variable Field in a Display, then attach a Variable. Note that if the field is too short, only the right-most characters are displayed. For example, the hex value 63(3F) cannot be shown in a field one character long.

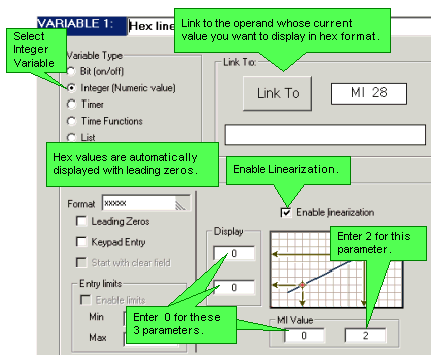

2. Define the Variable as shown below.

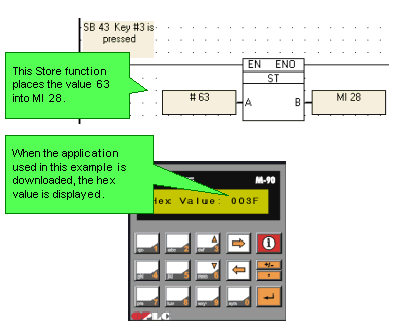

3. The Ladder net below stores the value into the MI.
