Click Store on the Ladder Toolbar.
Select Store Direct from the Store Menu.
Move the Store Direct element to the desired net.
Enter the desired Operands and Addresses.
The Store Direct element appears on the net with the set Operands and Addresses.
Store Direct allows you to write a constant, MI or SI value into another MI or SI.
To use the Store Direct function:
Click Store on the Ladder Toolbar.
Select Store Direct from the Store Menu.

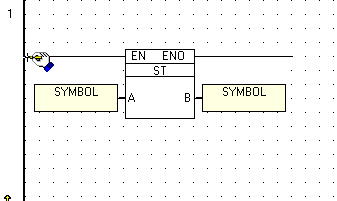

Move the Store Direct element to the desired net.

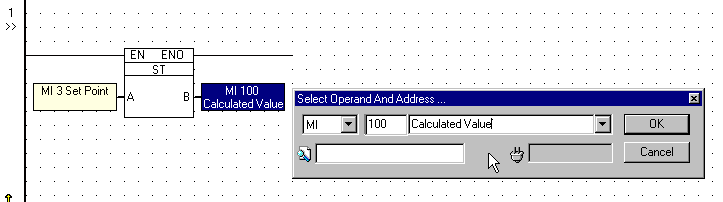

Enter the desired Operands and Addresses.
The Store Direct element appears on the net with the set Operands and Addresses.

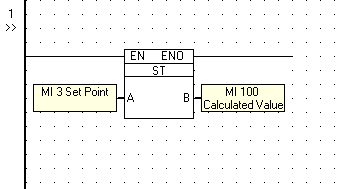

According to the above example, the value in MI 3 will be stored in MI 100. The previous value in MI 100 is lost. The current value in MI 3 remains unchanged.
