Placing a Function in a Net

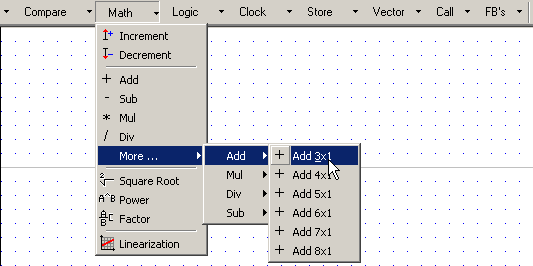

1. Select any type of Ladder function by:

• Selecting it from the Ladder toolbar,  -or-

• Selecting it from the Ladder menu,    -or-

• Right-clicking on the Ladder to display the Ladder menu and then selecting the function.

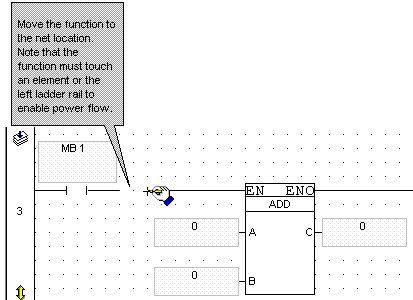

2. Move the function to the desired net location, then click.



3. Link operands using the Select Operand and Address .
