The Formula function, located on the Math menu, enables you to apply mathematical operators to operand values, and then output the result to a register.

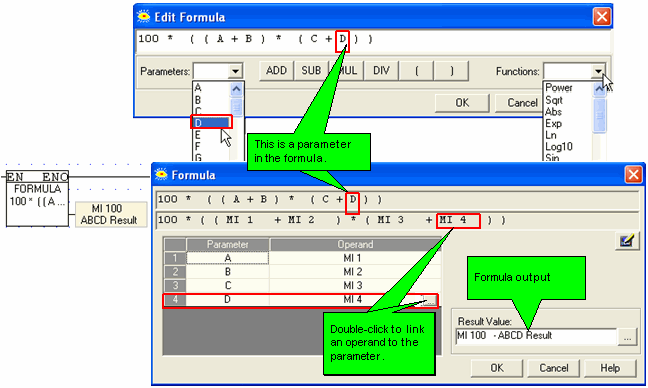

To create a formula, place the Formula function in the Ladder; the Edit formula box opens. You can type in constant numbers, parameters and operators. You can also select parameters and operators from the drop-down lists.
|
Note ♦ |
The formula syntax conforms to normal mathematical notation. |
|
♦ |
With the exception of the - (minus) sign, binary operators cannot be used to begin a formula. The other binary operators include Add [+[, Mul [*], Div [/], Parenthesis [( )], and Power. Unary operators, such as Sin, may be used to begin a formula. |

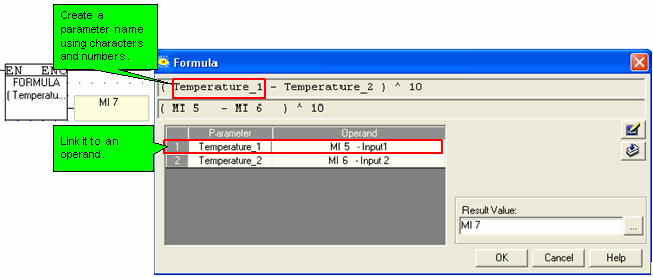

You can create a parameter name using a mixture of characters and numbers.
|
Note♦ |
A parameter name may not begin with a number or contain spaces. Use an underscore ( _ ) in place of spaces. |
|
♦ |
A constant may not exceed the value of a MF or ML. |
|
♦ |
In the following cases, controller will process the formula using floating registers:
|
