button on
the toolbar.Hardware Configuration opens automatically when you
first create a new project. In order to open Hardware Configuration in
an existing project, either select Hardware Configuration from the View
menu or click the button on
the toolbar.

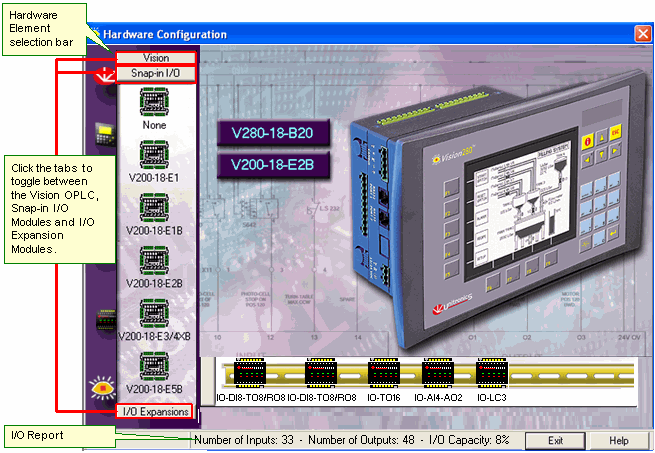

Click on the appropriate icon to select the model Vision, the Snap-in I/O module, and any I/O Expansion modules and VFDs required by your application.
After you select the Snap-in or Expansion I/O modules connected to the controller, you can configure inputs: analog, digital, and high-speed counter/shaft-encoder/frequency measurers and PT100; and outputs: analog, digital, and PWM high-speed outputs.
Note ♦
|
You must select the correct Vision model and Snap-in I/O modules before downloading your project. |
|
To avoid exceeding the I/O capacity of your controller, check the I/O report at the bottom of the Hardware Configuration window. |
