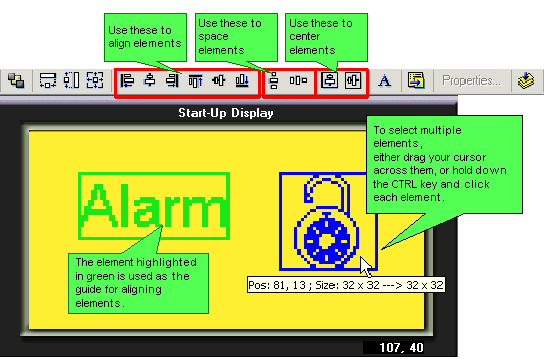

When you align, space, and center elements, be careful not to make them the same size and align them one on top of the other. If elements are 'fused' together in this way, they cannot be separated.
|
Note ♦ |
The HMI display uses a grid which spaces the lines 8 pixels apart. To optimize Displays and shorten the PLC cycle time, images and variables should be aligned to grid.
|
