Test Mode: Changing an MI or MB value

To update a MI or MB value during Test Mode:

1. Enter Test Mode.

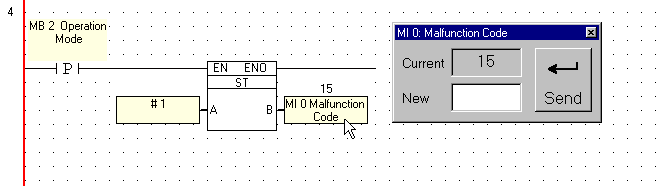

2. Click on the MI / MB value that you want to modify.

3. The Modify Window opens.

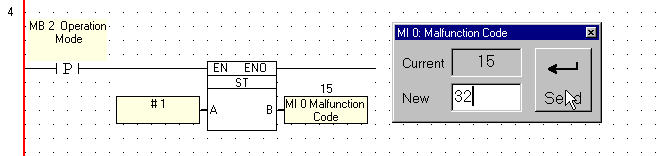

4. Enter the new value for the MB / MI in the New field.

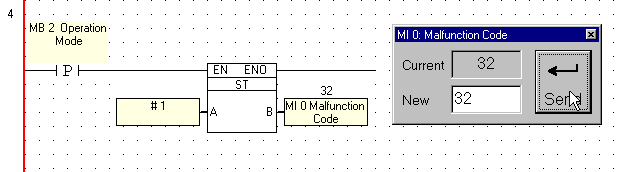

5. Click Send. The new value is assigned.



Notes:

• Make sure that communication exists between the PC and controller.

• You cannot modify a MB / MI value if the application is writing into it in every cycle.
