Less or Equal

The Less Than or Equal To function block evaluates input A to see if its current value is less than or equal to input B.

If input A is less than or equal to input B: power will flow through the function block.

If input A is not less than or equal to input B: power will not flow through the function block.

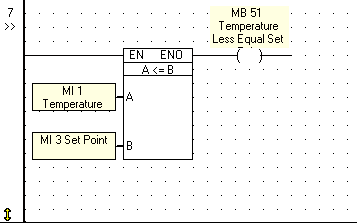

According to the above example:
