List of Rectangles

You can change the color of a rectangle according to the current value of a data tag register.

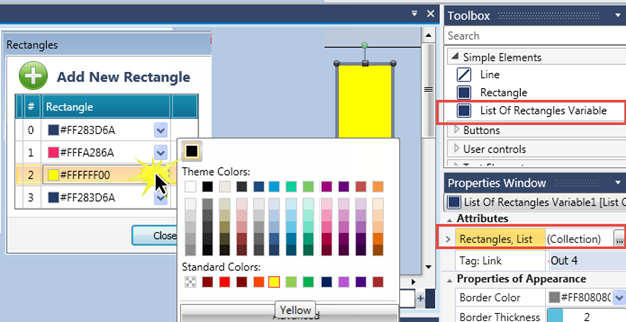

After you place the element, click on Properties> Rectangles List > Collections.

Click Add New Rectangle, and then click the drop-down arrow to select colors for each index number. The value within the linked data tag operand 'points' to an index number within the list.  When the operand value is equal to a particular number, the associated color is shown in the Display.

Attributes

Actions

Actions enable a single Touch Element to trigger multiple events. Multiple bits can be linked to one element, triggering Load screen, set, reset, and toggle bits, and more.

To create an action:

  1. Place an element on the screen.

  2. Select Actions> Collections in the Properties Window.

  3. In Element Actions, click Add New Action.

  4. Select the Action, Operand or Screen, and the action Trigger.



Message Box

Elements that offer actions also allow you  to show users a Message Box, a popup message that opens when the user touches the element.





The message can ask the user a question, or give instructions and warnings.

You can select icons, include buttons in the Message Box and use the buttons to drive actions.



Tag: Link

The value of this tag determines what is displayed in the HMI element.

Images, List

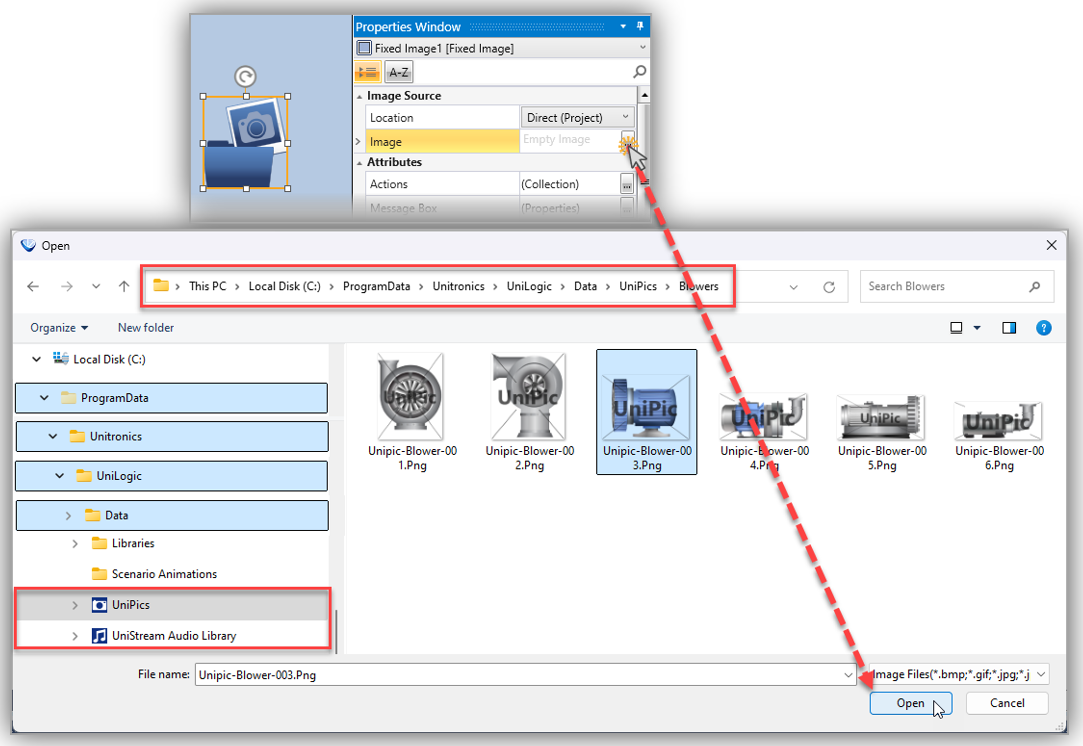

Assign images to index numbers by clicking Collection and navigating to the desired imagenavigating to the desired image.

To select an image from the UniLogic Library, select UniPics in the Windows File Explorer.

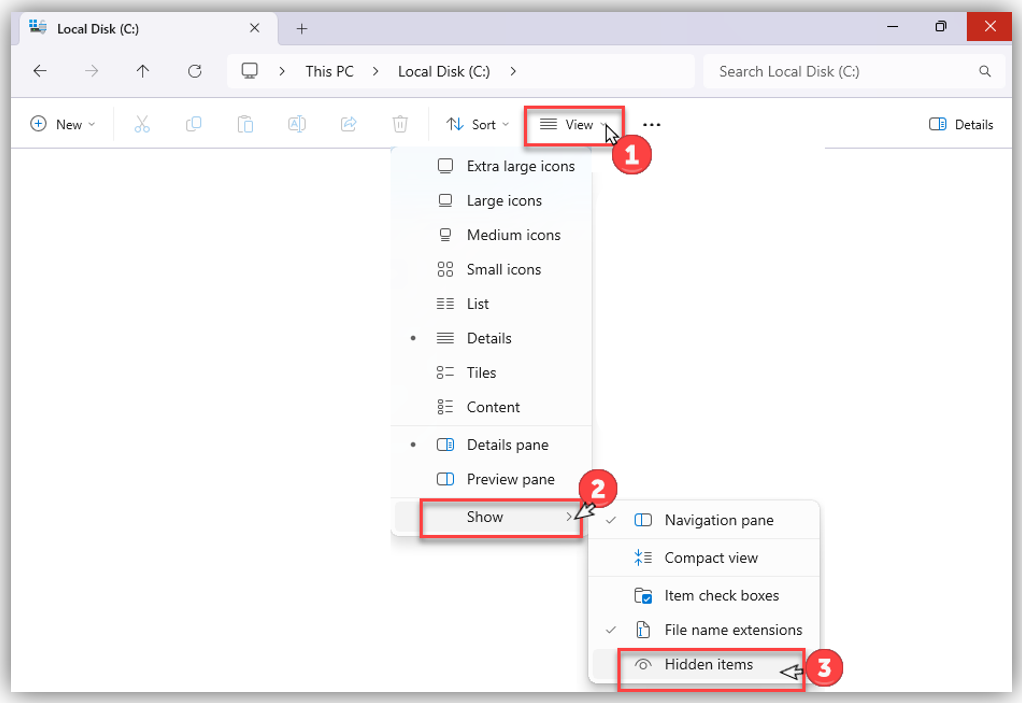

Note: To access the ProgramData folder in the Windows File Explorer, you must toggle on View > Show > Hidden itemstoggle on View > Show > Hidden items.
