Assign a PLC Name via UniApps

You can set a PLC Hostname and a PLC name for MQTT

To set the PLC Name:



  1. Enter UniApps: touch and maintain contact for several seconds with the upper right corner of the HMI Panel touchscreen until the UniApps popop menu appears.

    You can also enter via VNC, by clicking the cursor on the  upper right corner of the HMI and holding the mouse button down.

  1. Select UniApps.

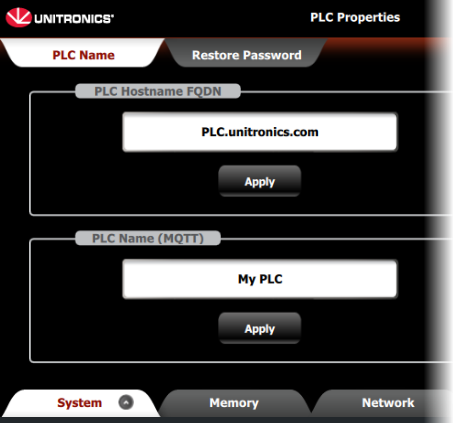

  1. Select the System tab, then press the arrow at the right side of the screen to view and press the PLC Properties option.

  1. Touch the Enter PLC Name field to open the UniStream virtual keyboard, type the name, and press Apply.
