Refer to the Unitronics module's data sheet for details regarding calibration, zeroing, etc.
These I/O modules enable you to integrate a loadcell or strain-gauge in your control application.
Note that there are two methods of calculating weight according to user units: via Formula, or using a UDFB.
A sample application showing both methods may be found in the UniLogic Example applications, which may be downloaded here in the Unitronics web site.
|
Refer to the Unitronics module's data sheet for details regarding calibration, zeroing, etc. |

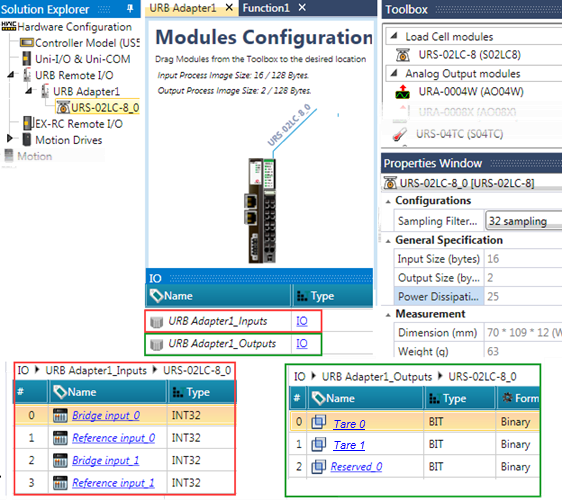

When you include a URB Loadcell/Strain-gauge I/O module in your program, UniLogic creates a struct containing the parameters you need to calculate weight.

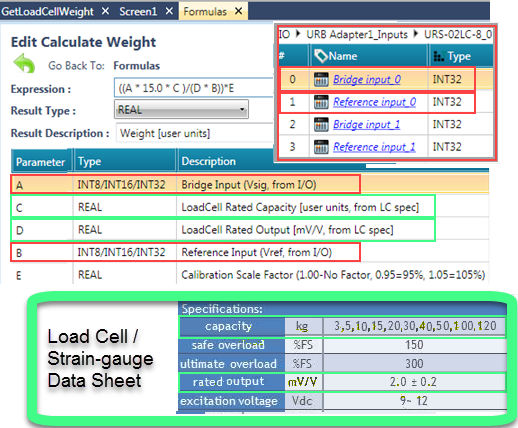

You can use the formula ((A * 15.0 * C )/(D * B))*E configured as shown below.
Parameters A and B relate to the Unitronics I/O module's inputs.
Parameters C and D relate to the specifications of the Loadcell /Strain-gauge device you connect to the Unitronics' I/O module.
Parameter E, Scale Factor, can be used to fine tune measured results if required by using known weight, and according to calculated result, calculating the required offset percentage.
